Indoor temperature and humidity detector

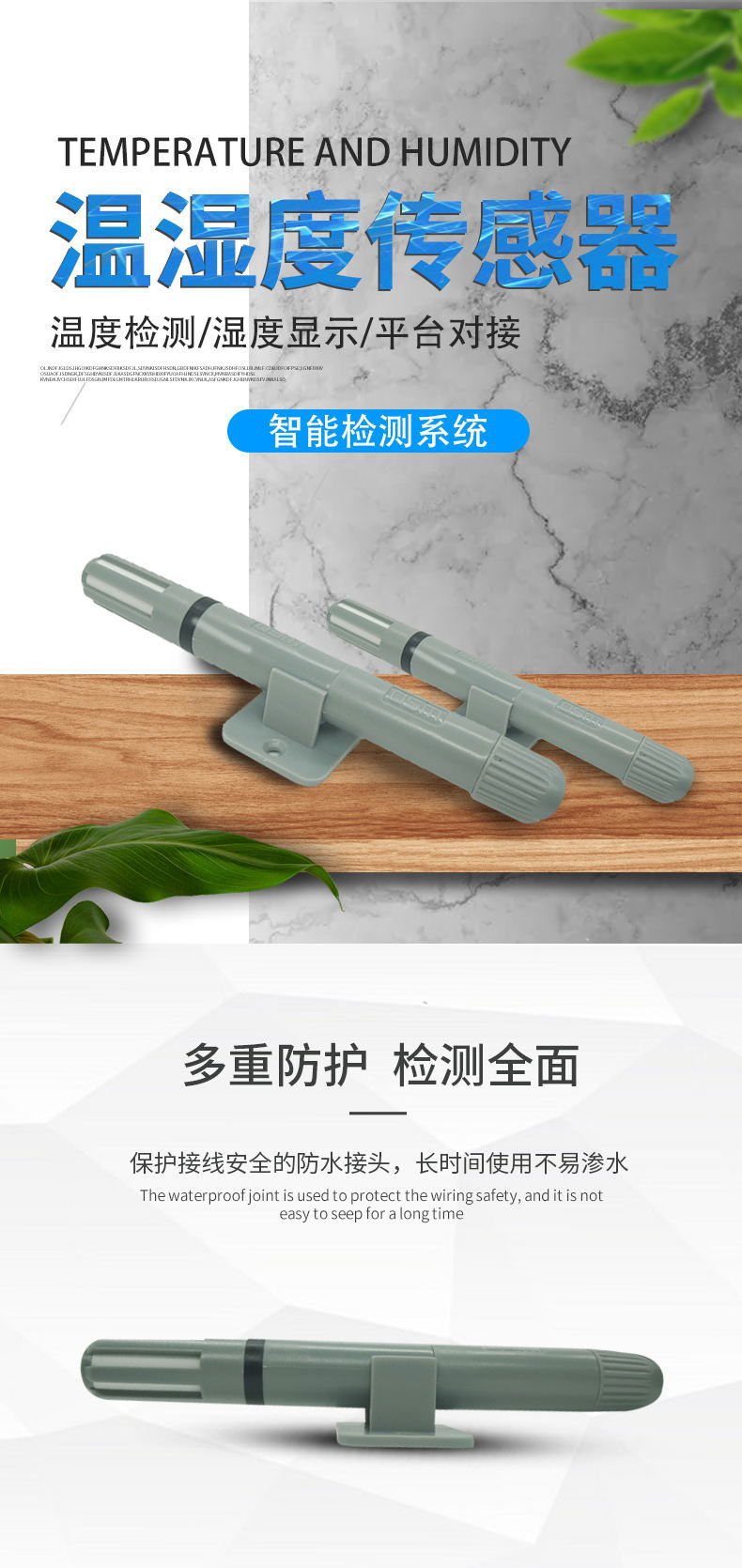

Multiple protection, comprehensive detection
The waterproof breathable membrane and waterproof connector are used together to ensure data accuracy and prevent water seepage.
ABS material, dustproof and high temperature resistant
The shell is made of high-quality ABS flame retardant material, which is dust-proof and high-temperature resistant and easy to clean.
Imported chips, stable and reliable
Industrial grade imported chip, high measurement accuracy, wide range, long-term stable operation and strong reliability.

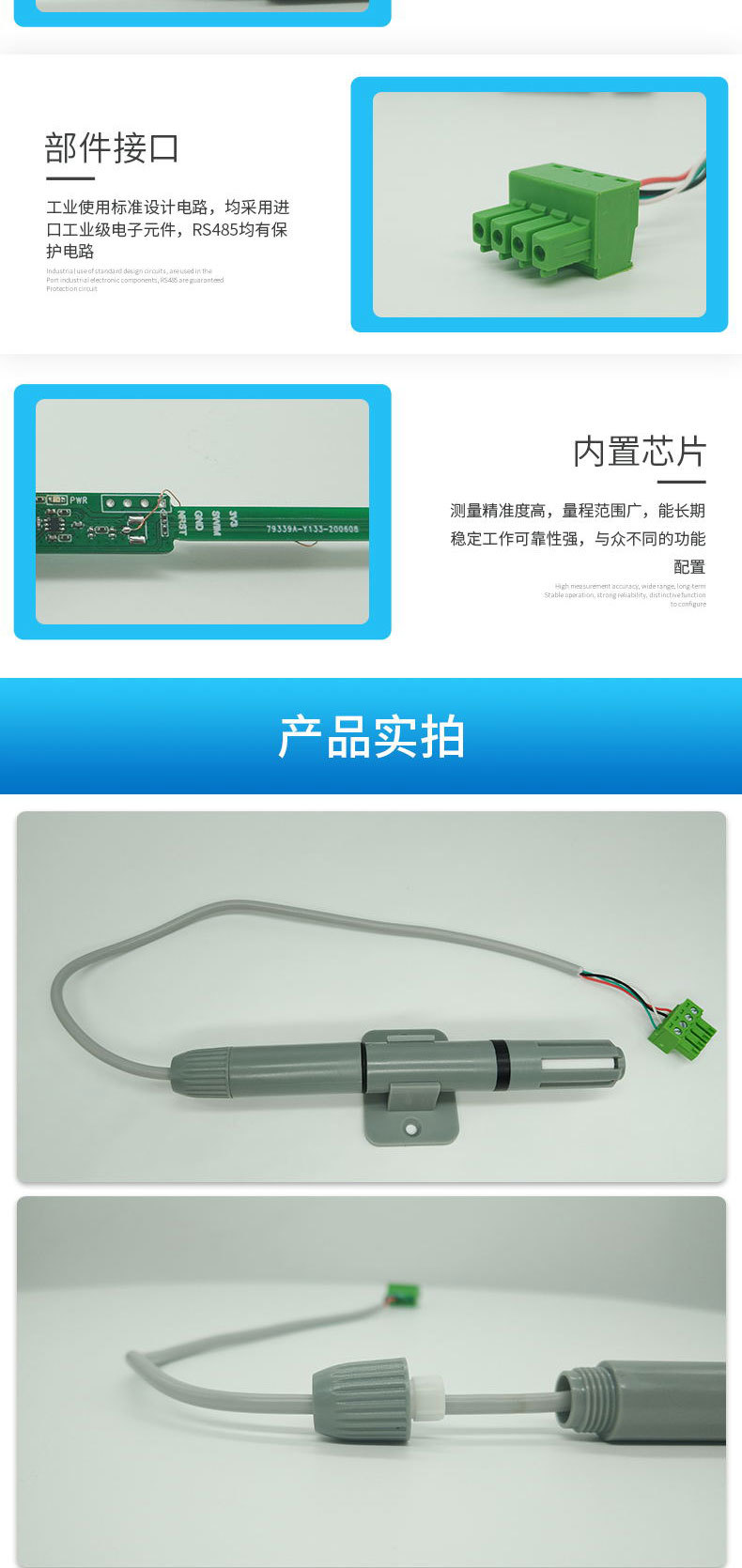

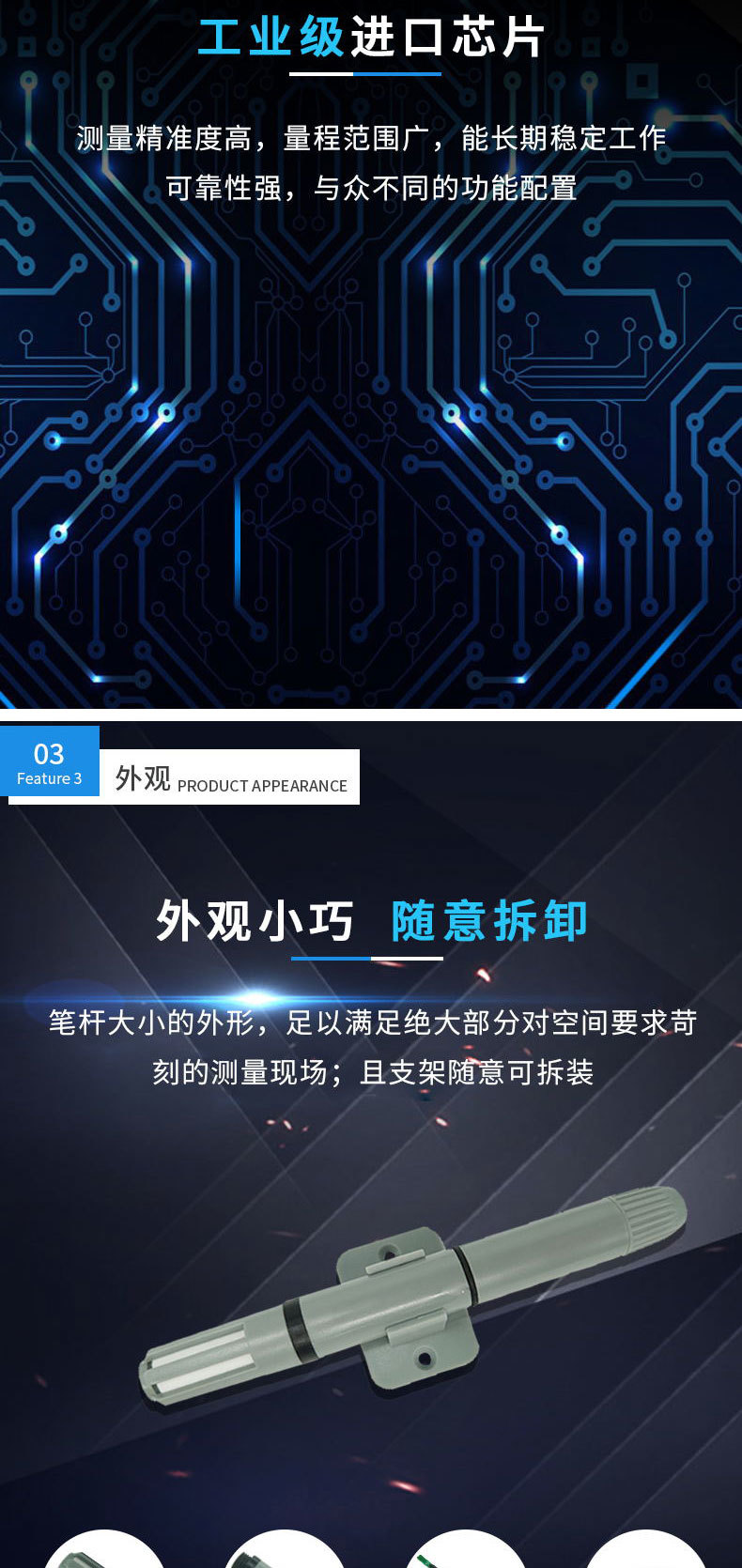

Small in appearance, easy to disassembleThe appearance is exquisite and compact, which can meet most of the measurement sites with strict space requirements, and the bracket can be disassembled at will.

产品描述
Product Description
Roduct Parameters
Specifications
Instructions For Use

Multiple protection, comprehensive detection
The waterproof breathable membrane and waterproof connector are used together to ensure data accuracy and prevent water seepage.
ABS material, dustproof and high temperature resistant
The shell is made of high-quality ABS flame retardant material, which is dust-proof and high-temperature resistant and easy to clean.
Imported chips, stable and reliable
Industrial grade imported chip, high measurement accuracy, wide range, long-term stable operation and strong reliability.
Small in appearance, easy to disassembleThe appearance is exquisite and compact, which can meet most of the measurement sites with strict space requirements, and the bracket can be disassembled at will.

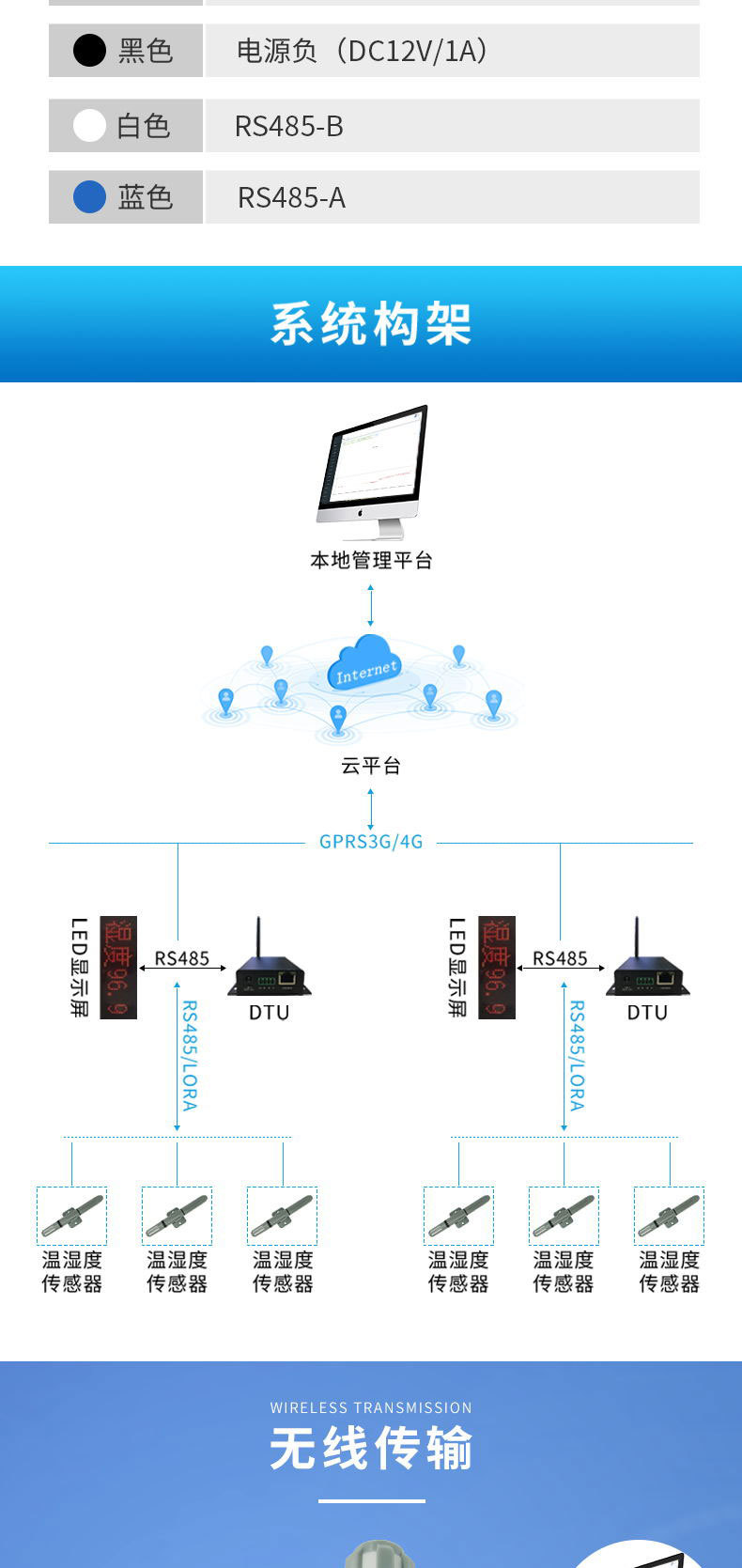

Interface and Hardware Description

Red wire: positive power supply (DC12V/1A).

Black wire: negative power supply (ground wire).

Green line: RS485—A+.

White line: RS485—B-

Specifications	Parameters
Product model	H Y H 1 L 6 5
Power	DC12V/1A
Temperature measurement range	-40℃~125℃
Temperature measurement accuracy	±0.1℃
Humidity measurement range	0~100%RH
Accuracy of humidity measurement	±1.5%RH
Transfer method	RS485 or LoRa wireless transmission

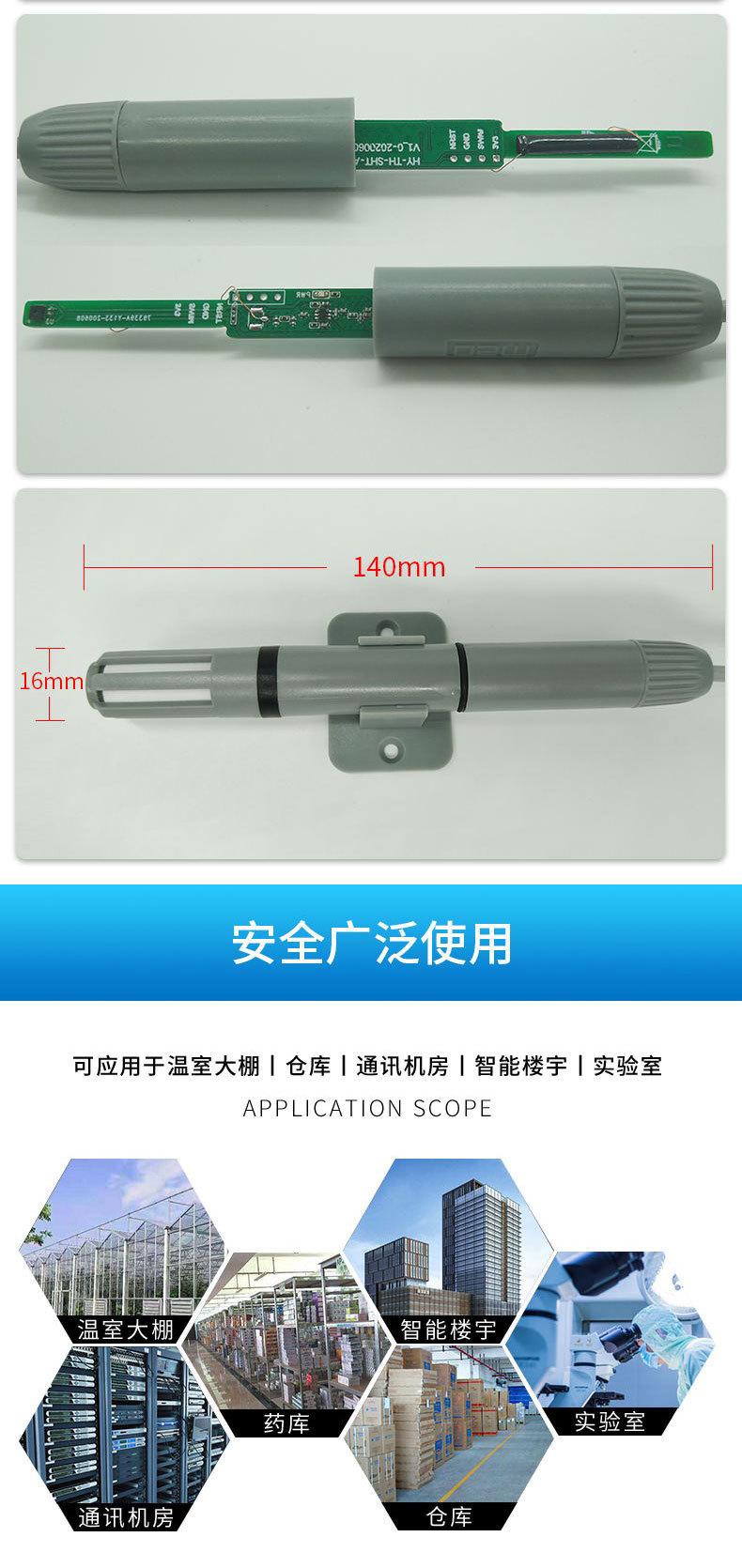

Product size	140mm16mm (lengthdiameter)

Instructions For Use

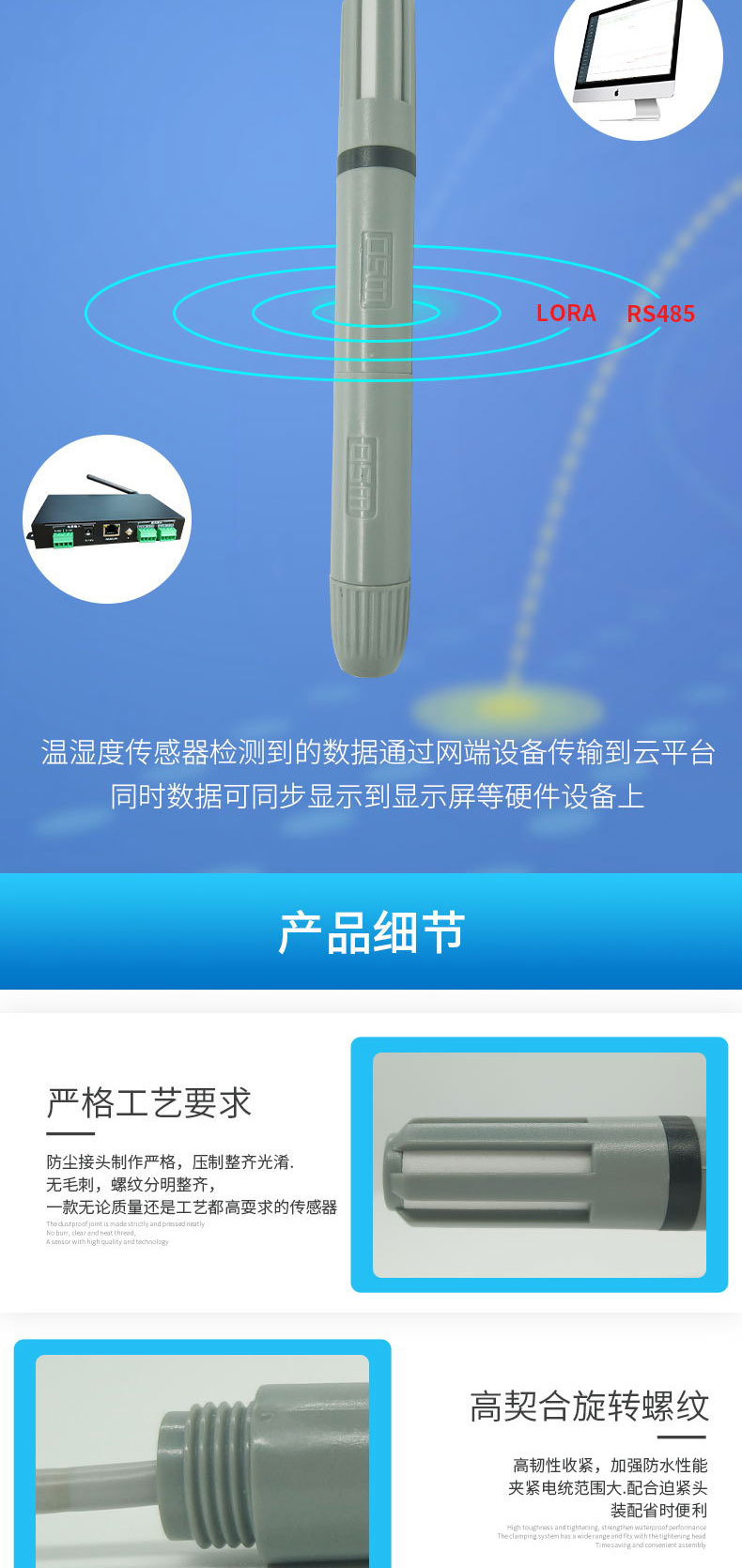

When powered on for the first time, connect the DC12V power supply correctly and connect the gateway according to the wiring instructions. The device supports LoRa and RS485 communication.

Protocol Description

LoRa Protocol

If you need to connect the LoRa protocol, please contact our technology.

MODBUS Protocol

1. Definition of holding register address

Address	Register information	Operation	Remarks
0x1000	MODBUS address	read/write	1~254, default 01,0 and FF are broadcast addresses
0x0001	Temperature	read only	Resolution: 0.01℃ Range: -40~125℃ Accuracy: ±0.2℃

0x0002	Humidity	read only	Resolution: 0.1%RH

2、Example

Read the temperature of device address 0x01

Query Frame:

Address code	function code	Start address	Data length	Check code low position	Check code high position
0x01	0x03	0x00 0x01	0x00 0x01	0xD5	0xAC

Reply Frame:

Address code	function code	returns the number of valid bytes	Temperature value	Check code low position	Check code high position
0x01	0x03	0x02	0x00 0x12	0x38	0x49

Temperature: 0012H(hex)=18=>temperature=18

Disclaimer OF Warranties

The company reserves the right to change this specification and update the product. The specification and product may be updated without prior notice without affecting the product quality and user usage. We are not responsible for any direct, indirect, intentional or unintentional damage and hidden dangers caused by improper use and out-of-specification use.
