Dynamic ring detection system

一.Program background

It is used in computer rooms in various industries such as government, electric power, telecommunications, medical care, railways, military, enterprises, education, and the Internet to provide support for various types of business. The computer room is composed of key equipment such as computers, servers, network equipment, and storage, as well as infrastructure such as power supply systems, refrigeration systems, cabinet systems, fire protection systems, and monitoring systems. It is the core department of these units. This solution aims at the hidden safety hazards in the operation and maintenance of the computer room, and centrally monitors and manages the power, environment, network, security, etc., so as to improve the operation and maintenance efficiency and ensure the safety of the computer room.

二．Functional Requirements

• Temperature and humidity monitoring, environmental temperature and humidity monitoring and control, to ensure that the temperature and humidity of the environment can ensure that the equipment operates in the optimal environment, the temperature detection of the equipment, when the temperature of the equipment is abnormal, it is necessary to alarm in time.
• For water leakage detection, the equipment in the computer room is relatively precise and expensive, and it is necessary to detect whether there is water leakage in the computer room in real time
• Precise air-conditioning detection, air-conditioning running state, remote switch machine.
• Ordinary air conditioning detection, running state, including return air temperature, supply air temperature, air conditioning mode, power on/off state, automatic start when incoming calls and other functions.
• Monitoring of alarm video, when an abnormality occurs in a certain place in the computer room, alarm video is sent in real time.
• The monitoring of the particulate matter in the computer room, the particulate matter in the computer room is detected, and the alarm is given in time when the particulate matter is abnormal.
• UPS power detection in the computer room, use infrared to detect whether the battery is hot.

Its product block diagram is as follows:：









三.Feature Design

There are three main components of this program, wireless transmission, sensors, and IoT management platform.

• Wireless transmission

Facing the large-scale sensor data transmission of dynamic ring detection, our company's long-distance wireless transmission technology is used to transfer the data of various types of sensors to the dynamic ring monitoring platform. Our wireless technology uses a combination of LORA, 2G/3G/4G/5G/CAT1 (mobile network) and Ethernet. Use LORA locally to transmit sensor data to the gateway, which in turn transmits the data to the platform via a mobile network or Ethernet.。

• Sensor

Our company has obtained many patents on the research and development and application of TOF, temperature and humidity, and gas sensors. In this scenario in the computer room, a variety of sensors are used to monitor the environment.

• Management platform

  The management platform can carry out a detailed management of the equipment. It can display real-time data in real time, save data, and find historical data.

四.Detailed introduction of key products

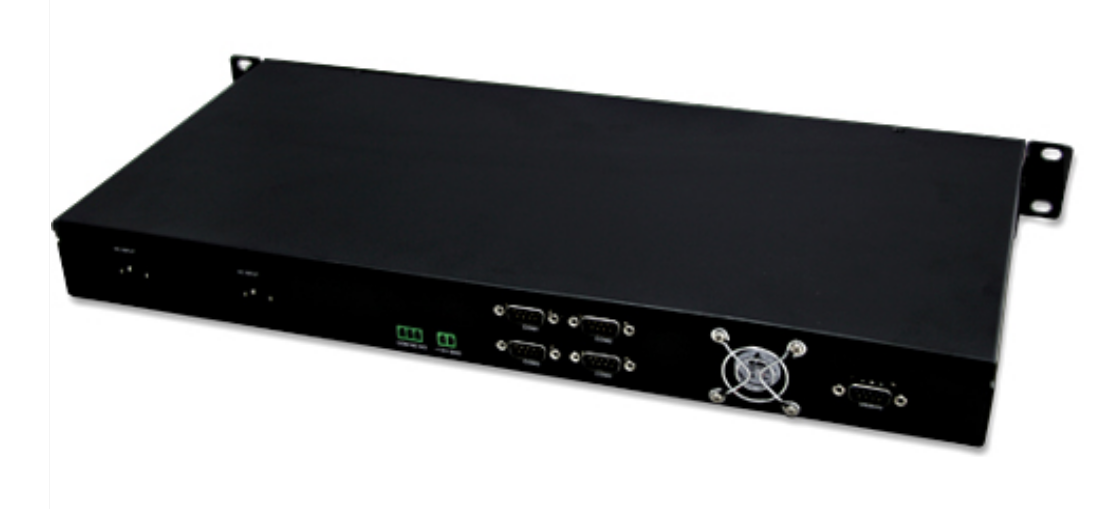

4.1Embedded dynamic monitoring host

• Product Description

The embedded dynamic monitoring host is a 24-hour real-time monitoring multi-functional monitoring host specially developed by our company for the computer room environment. The host can connect all our RS485/LORA transmitters (temperature, humidity, water immersion, power failure, smoke, infrared, noise, air quality) to the monitoring host through the RS485/LORA wireless interface, and Upload the data to the cloud platform provided by our company or the customer's own server in real time. The device supports 2G/3G/4G/5G, Ethernet, RS485 wired and other methods to upload data, and users can choose the corresponding sub-model products according to actual use needs.

The device has a built-in embedded WEB server, without opening the cabinet door, you can directly log in to the WEB page through the remote, setting parameters more safely and conveniently. The size of the equipment adopts rack-type design, 1U size, occupies small space, and is convenient and quick to install. Using metal shell, dustproof, anti-static, anti-interference ability is strong.

The device can use a variety of alarm methods, providing a complete alarm method, SMS, sound and light, telephone, email, APP

Prompt alarm, when the node alarms, the main page will display the alarm channel in turn, and the safety alarm can be set. When the set time is reached, the system will automatically display the alarm channel.

Automatically send the corresponding SMS to the bound mobile phone number. The device has its own voltage detection, which can be used for city power failure alarm. Switch detection can be external

Connect to switch signals such as access control. The device has the function of automatically caching data when power off, automatically uploading data when incoming calls, built-in data

Store up to 5.2 million records of information.

It is specially designed for computer network room, communication room, battery pack room, etc.

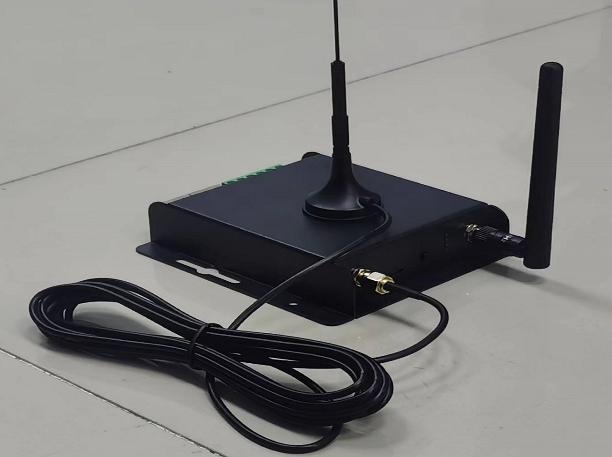

• Product Image



• Product parameters

project		Parameter	Notes
Product Features	L ORA function	supports standardLo RaWAN Agreement
		L oRa Non-signal communication up to eight channels, down to one channel
	Mobile wireless function	supportWIFIHot spot function
		L TE Support three mode options, including domestic, European, American, domestic support all Netcom
		supports Ethernet and 3G/4G/5GUplink and downlink data return, support automatic switching.
	hardware interface	support4-way R S485 , RS485can be connected to each Sensors
		support12RoadI input port, supports 12Road IO Outlet
		support8-way A I (analog) interface
	system functions	Support foreign countriesTServer
		supported/English interface switching and local time setting
		Support remote administrator login, maintenance and overhaul
		supportMQTT, support W EB interface management font>
		support buttons or W EB Operate to restore factory settings
Wireless performance	L ORA Wireless Channel Line	8 channels
	Work Mode	full duplex/half duplex
	LoRacommunication rate p>	292bps~5.4Kbps
	Maximum Transmit Power	27dbm
	Maximum Receive Sensitivity	-141dbm(SF=12)
	default is4 70MHZ,different frequency bands need to be customized< /span>
	Data Upload	10/100MEthernet and 3G/4G/5G	not supported by default5G
LTE-TDD : B38/B39/B40/B41   LTE-FDD : B1/B3/B5/B7/B8   TD-SCDMA: B34/B39   UMTS: B1/8   EVDO: 800MHz   CDMA1x: 800MHz   GSM: 850/900/1800/1900
Europe4GSupport frequency band	FDD LTE:B1/B3/B5/B8/B20 TDD LTE:B38/B40/B41 WCDMA:B1/B5/B8 GSM:  B3/B8
US4 Gsupport frequency band	FDD LTE:B2/B4/B12 WCDMA LTE:B2/B4/B5
WIFI	support802.11a/b/g/n protocol, 2.4G frequency band
Ethernet	support10M/100M adaptive network communication
Product Specifications	working temperature	-30℃~65℃
	Ethernet	support10M/100M adaptive network communication
	Product Specifications	working temperature	-30℃~65℃
DCPower supply, the voltage is 6V~12V











3.1.4Sensor character stacker

• Product Features

  The character stacker combines the data of the camera and the sensor through the gateway, and superimposes the data of the sensor on the video. When there is an alarm in the computer room, the character stacker will pass through the camera.



• Product Image





• Product parameters



项目		参数	备注
Product function	Character overlay function	Cameras supporting ONVFI protocol
		Support Hikvision, Dahua, Uniview and other brands of cameras
		The transmission is fast, and the configuration is completed in 0.5 seconds
		When characters are superimposed, the video quality will not be affected
		Intelligent recognition, automatic color change of characters, docking of the underlying protocol of the camera, and intelligent identification of the light and shade in the painting.
		The alarm threshold can be set for the sensor. When the sensor reaches the alarm threshold, the alarm video and pictures can be uploaded to the designated server.
	Mobile wireless capabilities	Support WIFI hotspot function
		LTE supports three mode options, including domestic, European, American, and domestic support for full Netcom
		Support Ethernet and 3G/4G/5G uplink and downlink data backhaul, support automatic switching.
	System functions	Support foreign TTN server
		Support Chinese/English interface switching and local time setting
		Support remote administrator login, maintenance and repair
		Support MQTT, support WEB interface management
		Support button or WEB operation to restore factory settings
LTE standard	Domestic 4G support frequency band	LTE-TDD : B38/B39/B40/B41   LTE-FDD: B1/B3/B5/B7/B8   TD-SCDMA: B34/B39   UMTS: B1/8   EVDO: 800MHz   CDMA1x: 800MHz   GSM: 850/900/1800/1900
	4G supported frequency bands in Europe	FDD LTE:B1/B3/B5/B8/B20 TDD LTE:B38/B40/B41 WCDMA:B1/B5/B8 GSM：  B3/B8
	US 4G supported frequency bands	FDD LTE:B2/B4/B12 WCDMA LTE:B2/B4/B5
	WIFI	Support 802.11a/b/g/n protocol, 2.4G frequency band
	Ethernet	Support 10M/100M adaptive network communication
Product Specifications	Operating temperature	-30℃~65℃
	Working humidity	5%RH~90%RH
	Certification	CE/FCC
	powered by	DC power supply, voltage is 6V~12V





4.3 Introduction of temperature gas sensor parameters

• Sensor function

  For the dynamic ring detection, our company has developed sensors such as temperature and humidity, PM2.5/PM10, CO2, etc., which all use a set of metal casings, which will be introduced one by one.

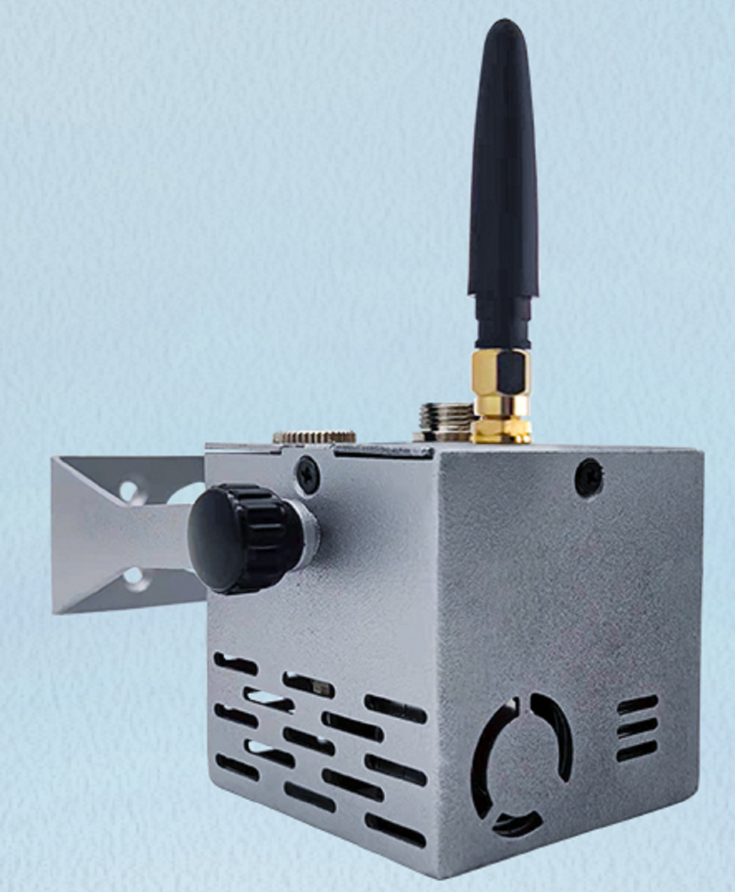

• The shape of the sensor





14. Parameters of temperature and humidity

standard	reference number
temperature amount	-40~ 125° ;C
Temperature Accuracy	0.3°C< /td>
Temperature division rate	0.015°C
Humidity level	0%RH ~100%RH
Humidity Accuracy	+2%
Humidity distribution rate	0.1%RH
L .oRa	self-defined LoRa agreement
RS485 MODBUS



Parameters of PM2.5/PM10

guīgé	cānshù
kēlìwù liàngchéng	0-1000ug/m3
kēlìwù jīngdù	s 100ug/m3: Tǔ 10ug/m3; > 100ug/m3: T 10%
jiāncè miànjī	20 píngfāng mǐ
L oRa	zì dìngyì LoRa xiéyì
RS485	MODBUS xiéyì



specification	parameter
particle range	0-1000ug/m3
Particle Accuracy	s 100ug/m3: soil 10ug/m3; > 100ug/m3: t 10%
Monitoring area	20 square meters
L oRa	Custom LoRa Protocol
RS485	MODBUS protocol

Parameters of formaldehyde

specification	parameter
Formaldehyde range	0~1ppm
Formaldehyde precision	s0.1ppm: +0.025ppm >0.1ppm: 25%
Formaldehyde resolution	1ppb
Monitoring area	20 square meters
L .oRa	Custom LoRa Protocol
RS485	MODBUS protocol

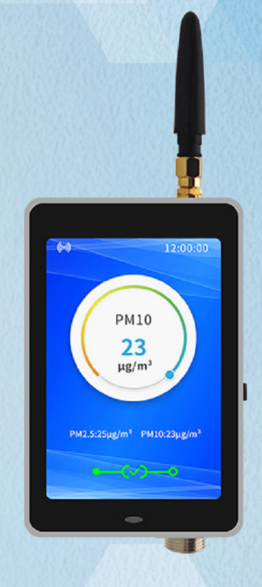

4.3Introduction to Display Terminals

• Product Features
• Product Image







• Product parameters

hardware	parameter
display	3.5" LCD
button	1 start button, 1 shutdown button
external interface	1 USB serial port, 1 power port ,1 channel RS485, 1 channel LoRa interface

5.4 Safety sensor
