Standard Room Temperature And Humidity Solutions

一.Introduction OF Standard Care Room

       Standard Curing Room it is specially used for the standard maintenance of constant temperature and humidity of concrete test blocks and cement test blocks. The standard curing room conforms to the latest national standards. It has a wide range of uses and great promotion value in highway transportation, railways, bridges, civil buildings, water conservancy, hydropower, and scientific research units. Concrete curing room temperature and humidity intelligent controller is a curing equipment specially used for concrete laboratory. Above %RH。

二.Temperature and humidity detection principle

       The humidity of the standard curing room must be kept above 95% and the temperature is 20℃±2℃. This kind of environment puts forward higher requirements for the monitoring of temperature and humidity, and most temperature and humidity sensors cannot work for a long time in such a high humidity environment. Our company designs temperature and humidity sensors separately. The humidity sensor uses capacitive humidity sensor as relative humidity monitoring, which can quickly dehumidify under long-term saturation, improving reliability and long-term stability. The patented solid polymer structure can be used for Linear voltage or frequency output loop, fast response time, temperature sensing uses a gold metal shell to package a thermistor, reaching IP68 waterproof level. In principle, this eliminates the problem that the sensor cannot work in a high-humidity environment。

三.Unattended standard maintenance room intelligent maintenance system

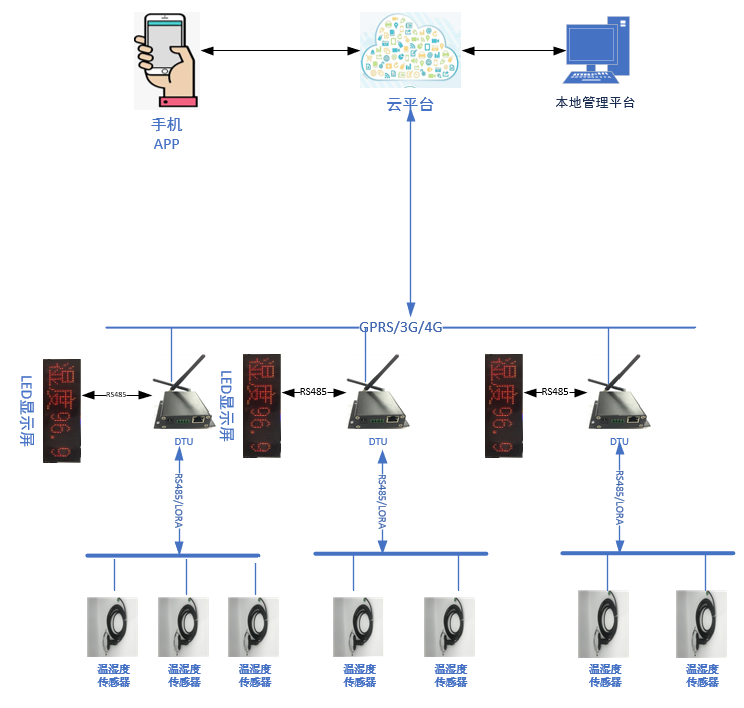

       The national standard for the maintenance of the standard curing room is 20 ± 2 ℃, and the relative humidity is 95%. Usually, personnel need to check whether the room temperature and humidity are normal. Our company has made an automatic monitoring system for the greenhouse temperature monitoring of the standard room. Its block diagram is as follows：

无人值守的标养室智能养护糸统



四.The Composition Of The Maintenance System Of The Intelligent Standard Maintenance Room

   The maintenance system of the intelligent standard curing room is composed of temperature and humidity sensor, DTU, and LED display screen. The following is the description of the whole system products:

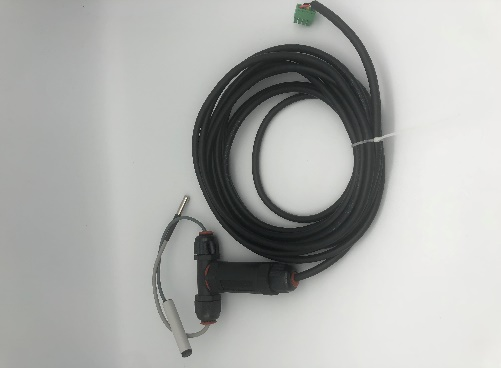

        3.1 Temperature And Humidity Sensor

              温湿度传感器     PIC

            温湿度传感器

              温湿度传感器     Parameter
feature parameter Remarks
Temperature measurement range -50C-150C
measurement accuracy Soil 0.5"C
Humidity measurement range _ 0-100%RH
working temperature -30C-60"C
precision Soil 3HRH
Transmission method RS485.LOAR wireless transmission
reliability Anti-static, anti-dust, effective against corrosive gases< /td>
humidity sensor HS110LF(Humirel, France)
temperature sensor

              温湿度传感器     Scope OF Use

             Temperature And Humidity Detection In High Humidity Range

        3.2  LED Display(HY-MATRIX-6416-A)

             HY-MATRIX-6416-A is a multifunctional sign, which can display different patterns according to different scenes. There are 10 display modes, the patterns of each mode can be edited freely, and the factory default patterns are supported. At the same time, users can also set the information to be displayed according to their own needs, with a high degree of freedom

              LED显示屏(HY-MATRIX-6416-A)     PIC

            LED显示屏(HY-MATRIX-6416-A)2

              温湿度传感器     Parameter
feature parameter Remarks
Number of dots  64X16
Power DC12V
Working temperature -20℃~50℃
storage temperature 0℃~40℃
Working humidity ≤85%RH
Shell material Acrylic,Metal
Transmission RS485, LOAR wireless transmission



        3.2 DTU

              温湿度传感器     Picture

            温湿度传感器

              DTU     Parameter
parameter description
Master Master Industrial grade CPU, main frequency 540MHZ
DDR 64M Byte, the highest frequency supports up to 360MHz
FLASH 32M Byte
wireless LORA 430-434MHZ, others can be customized 913-918MHz
WIFI 2.4GHZ, support IEE802.11b/g/n
2G/3G/4G FDD-LTE/TDD-LTE/DC-HSPA+/HSPA+/HSPA/WC DMA/TD-SCDMA/GSM/GPRS/EDGE
SUB 1G(custom 430-434MHZ, others can be customized 866-918MHz
Hardware parameters Data interface 1 Ethernet port, 1 WIF, 1 2/3/4G, 1 RS485
supply voltage DC6V-14V input; customizable DC6-36V
Work environment Working temperature-10C-75C, humidity 0%-90% RH
Current consumption Working current: <200mA/12V, maximum current 500mA/ 12V
Software Agreement operating system LINUX 34
Network Protocol IP,TCP,UDP,HTTP,HTTPS
Wireless Protocol LORA, WIFI protocol, ad hoc network LORA protocol
RS485 MOBUS, custom 485 communication protocol



              温湿度传感器     Function

             HY-DTU-001 is an industrial IoT gateway that integrates LORA, GPRS/3G/4G wireless communication technologies. It can collect local wired and wireless sensor data through RS485, LORA wireless technology, and pass GPRS/ 3G/4G and RJ45 upload sensor data to the cloud, and receive commands from the cloud at the same time, which can control and configure sensors and switches in real time

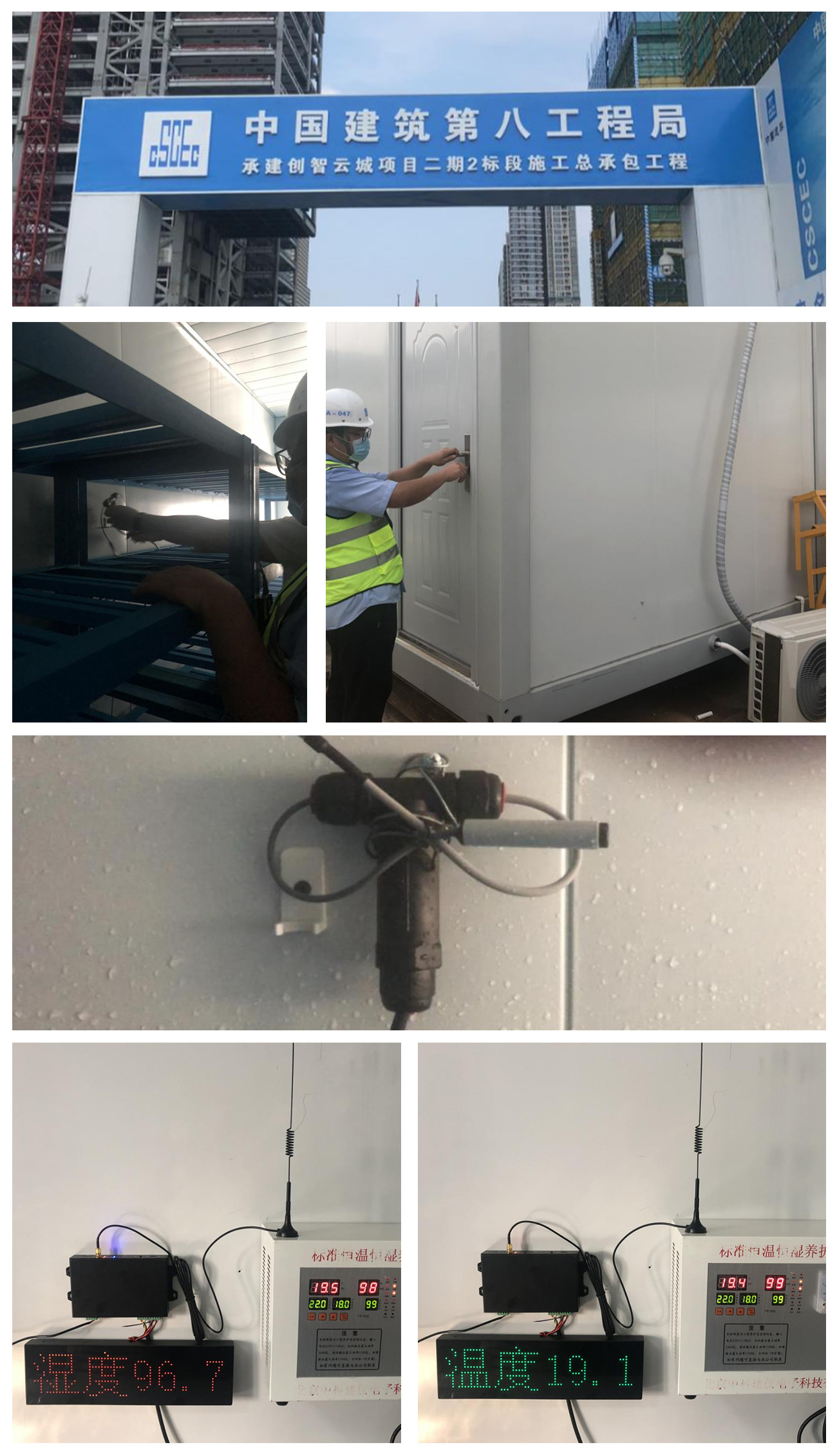

五. Success Case
