Dynamic Linkage Solution for Sensor Data and Video
Shenzhen Hengyi Technology Co., Ltd.
CONTENTS
Background Introduction
Function Introduction
Product Application Direction
Product Parameters
Background Introduction
In the field of artificial intelligence, the focus has always been on the intelligence of image algorithms. In fact, sensor perception is the cornerstone of artificial intelligence, providing a large amount of useful data for AI. Currently, in the AI field, sensor data and AI algorithms are separated from each other.
Function Introduction
Dynamic Linkage between Sensor Data and Video Overlay

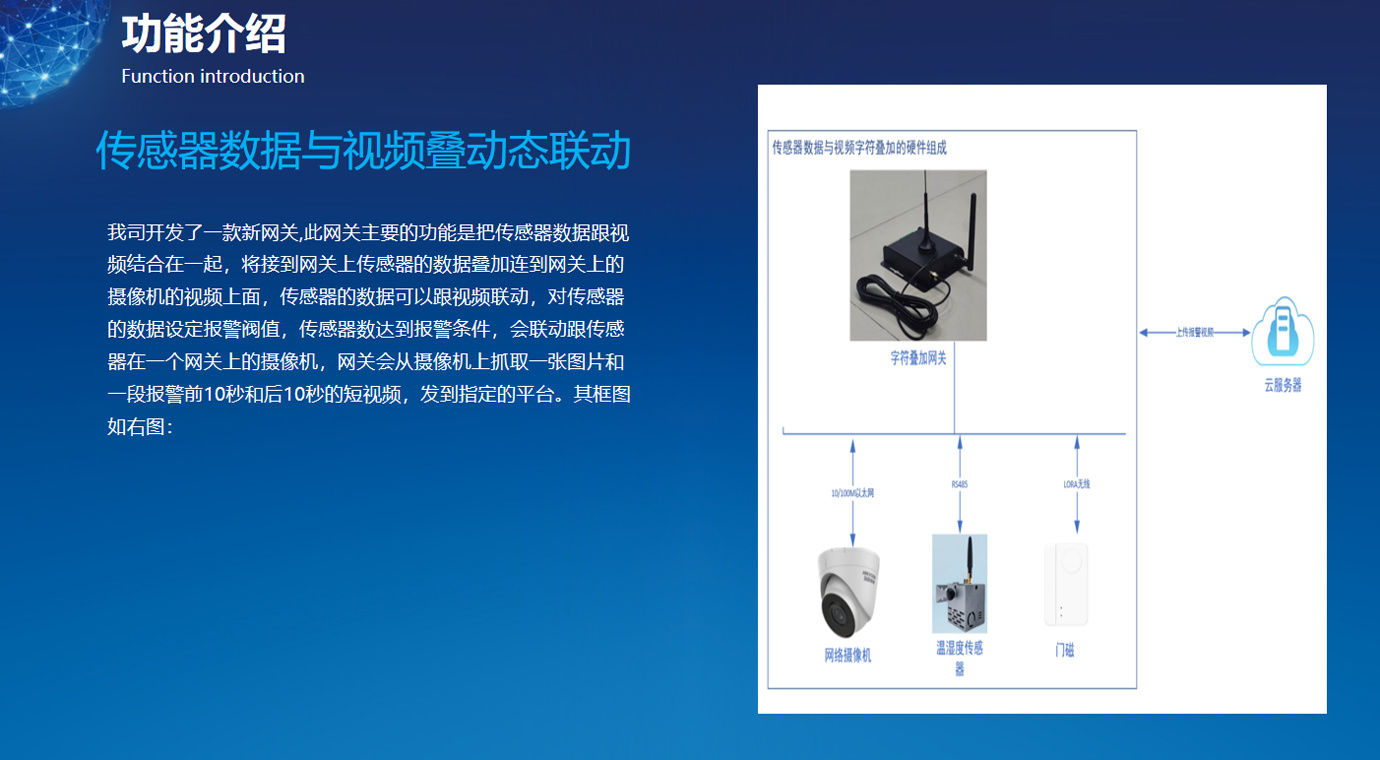

Our company has developed a new gateway. The main function of this gateway is to integrate sensor data with video: it overlays the data from sensors connected to the gateway onto the video feed of cameras also connected to the gateway. The sensor data can be dynamically linked with the video. Users can set alarm thresholds for the sensor data; when the sensor data meets the alarm conditions, the gateway will trigger the cameras on the same gateway. Specifically, the gateway will capture a still image and a short video (from 10 seconds before the alarm to 10 seconds after the alarm) from the triggered camera, and then send them to a designated platform. The block diagram is shown on the right.

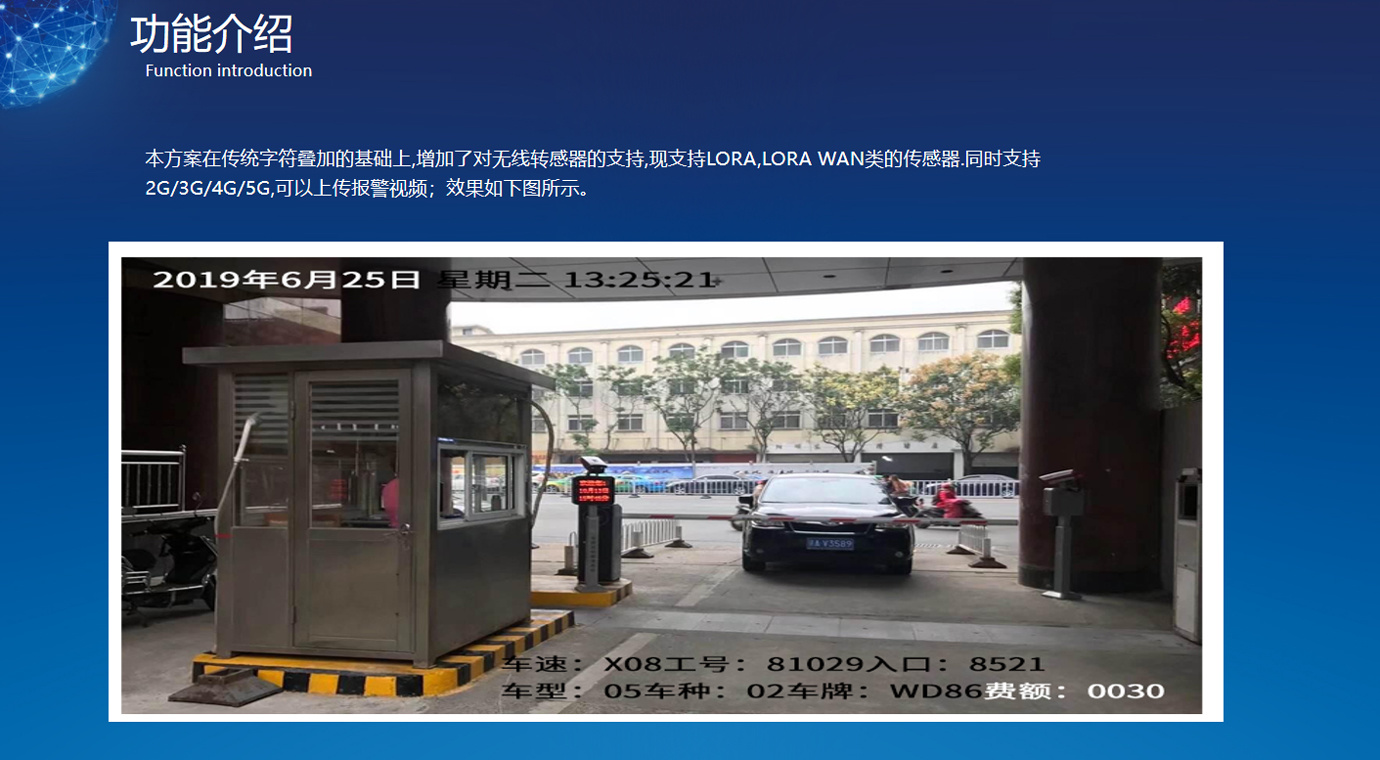

This solution, building on traditional character overlay, adds support for wireless sensors — now supporting LORA and LORA WAN - type sensors — and is compatible with 2G/3G/4G/5G networks. It can upload alarm videos; the effect is shown in the figure below.

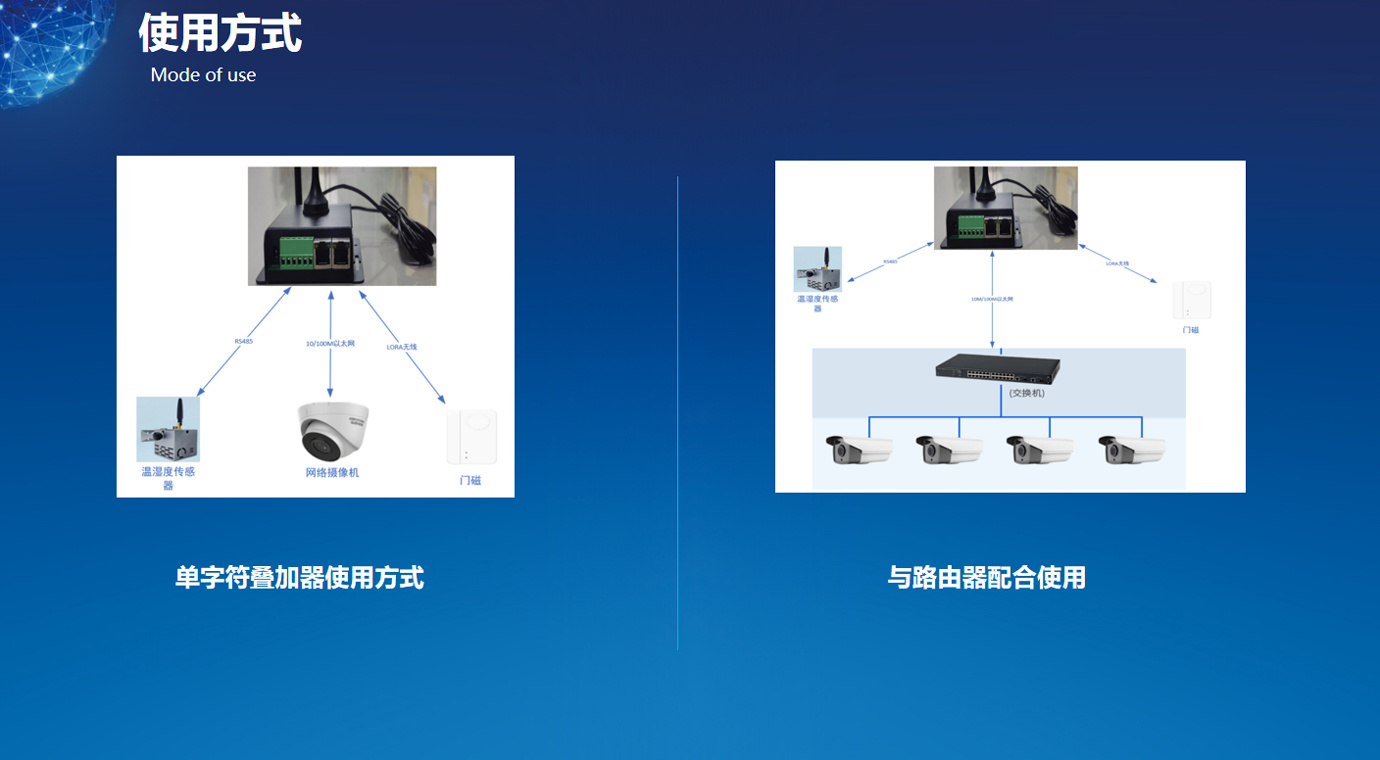

Mode of use
Single-character overlay mode
Used with routers

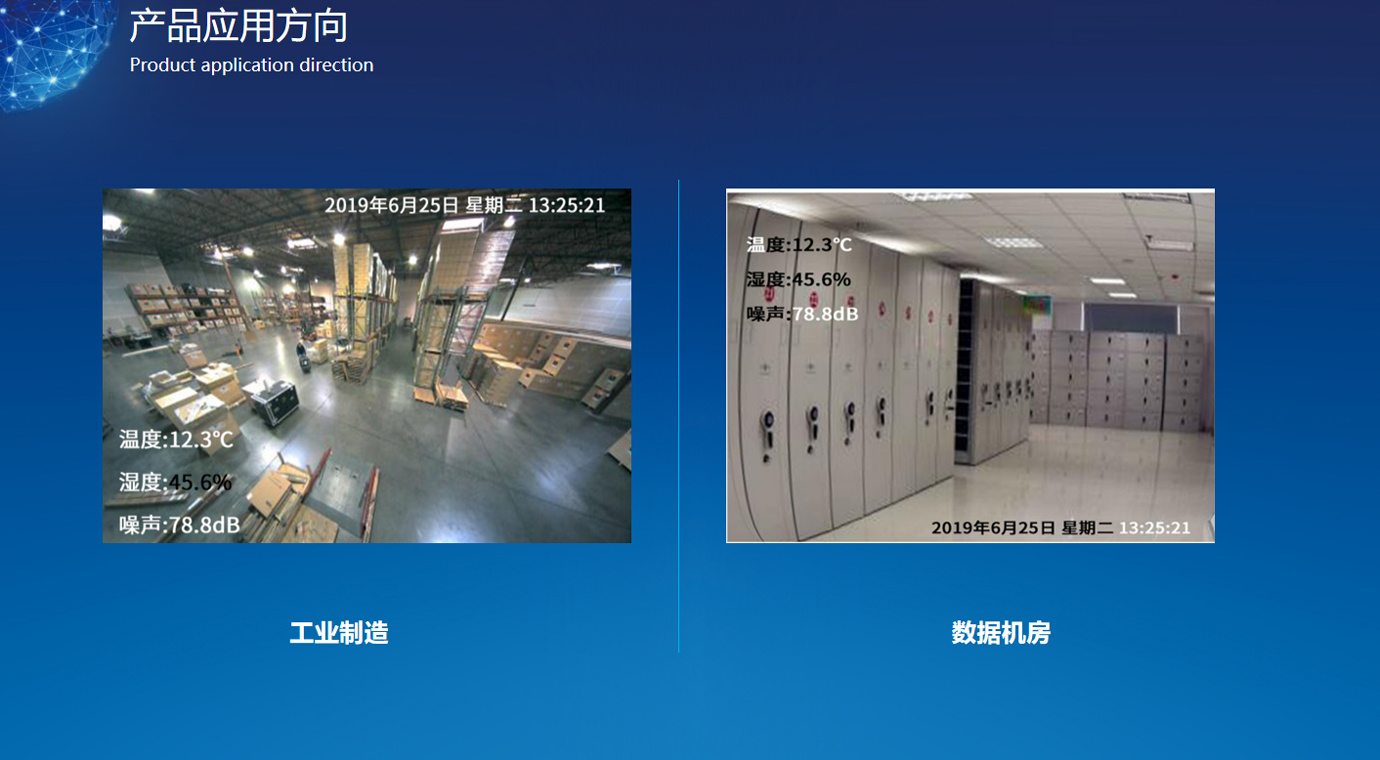

Product application direction
Advantages of this solution are as follows:

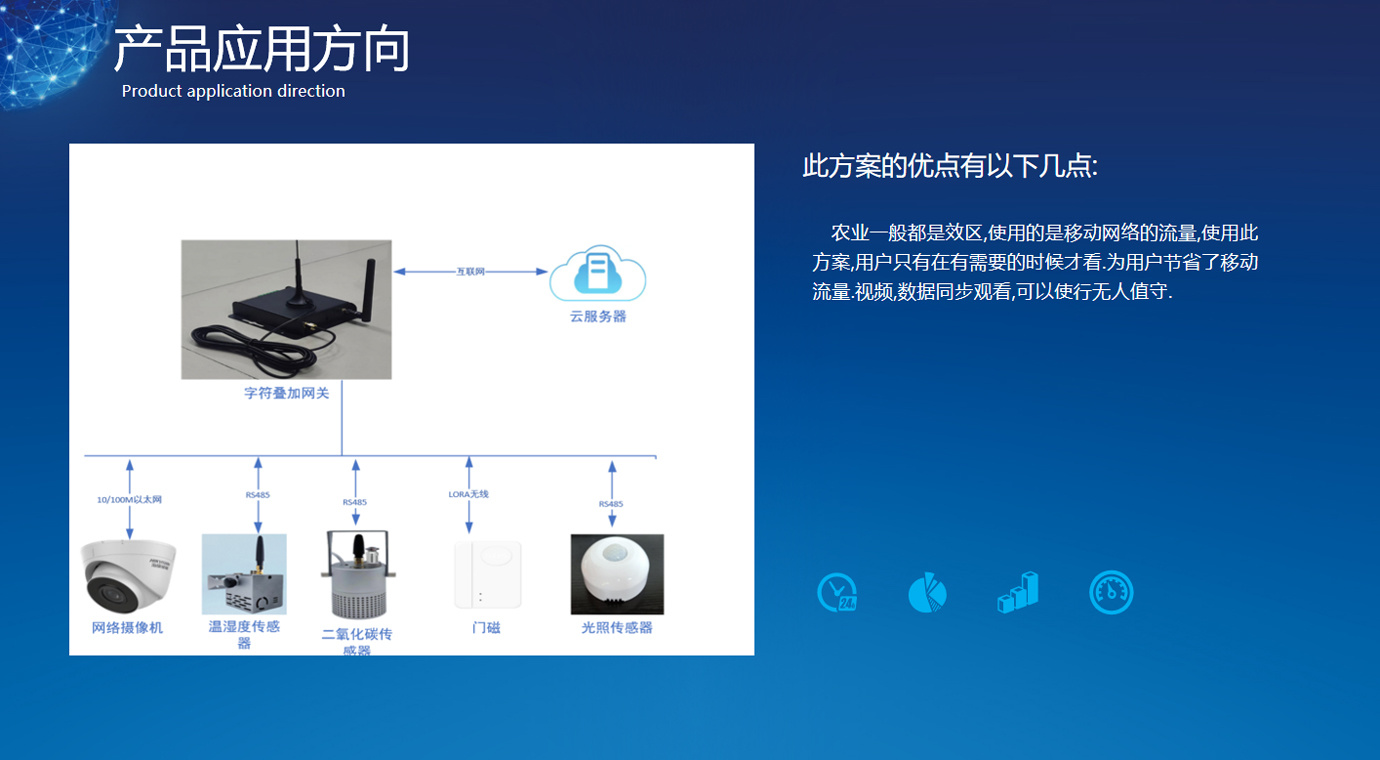

Agriculture is generally located in remote or suburban areas where mobile network data is used. With this solution, users only view the content when needed, which saves them mobile data. Synchronized video and data monitoring enable unmanned operation.
Smart Agriculture
Modern agricultural greenhouses require numerous sensors and controllers to work together. In the past, sensor instruments were placed inside the greenhouses, and dedicated personnel would conduct regular inspections. Now, using our character overlay device enables unmanned operation.
Product parameters
Feature Category | Function | Parameters |
Product Functions | Character Overlay Function | Supports ONVIF-compatible cameras; up to 8 camera streams can be overlaid simultaneously. |
|
| Supports Hikvision, Dahua, Uniview and other major camera brands. |
|
| Fast transmission — configuration completed in 0.5 seconds. |
|
| Character overlay does not affect video quality. |
|
| Intelligent recognition: automatic color change, low-level protocol docking, smart detection of brightness/darkness in video. |
|
| Allows setting alarm thresholds for sensors; when triggered, uploads alarm videos and images to designated server. |
Mobile Wireless Function | Wi-Fi Hotspot Function | Supports Wi-Fi hotspot mode. |
| LTE Mode Options | LTE supports 3 modes: China, Europe, USA; domestic version supports nationwide coverage. |
| Data Transmission | Supports Ethernet and 3G/4G/5G uplink/downlink data transmission; supports automatic switching. |
System Functions | TTN Server Support | Supports international TTN (The Things Network) servers. |
| Language & Time | Supports Chinese/English interface switching and local time setting. |
| Remote Management | Supports remote admin login, maintenance, and troubleshooting. |
| Protocol & UI | Supports MQTT protocol and WEB-based interface management. |
| Factory Reset | Supports factory reset via physical button or WEB operation. |

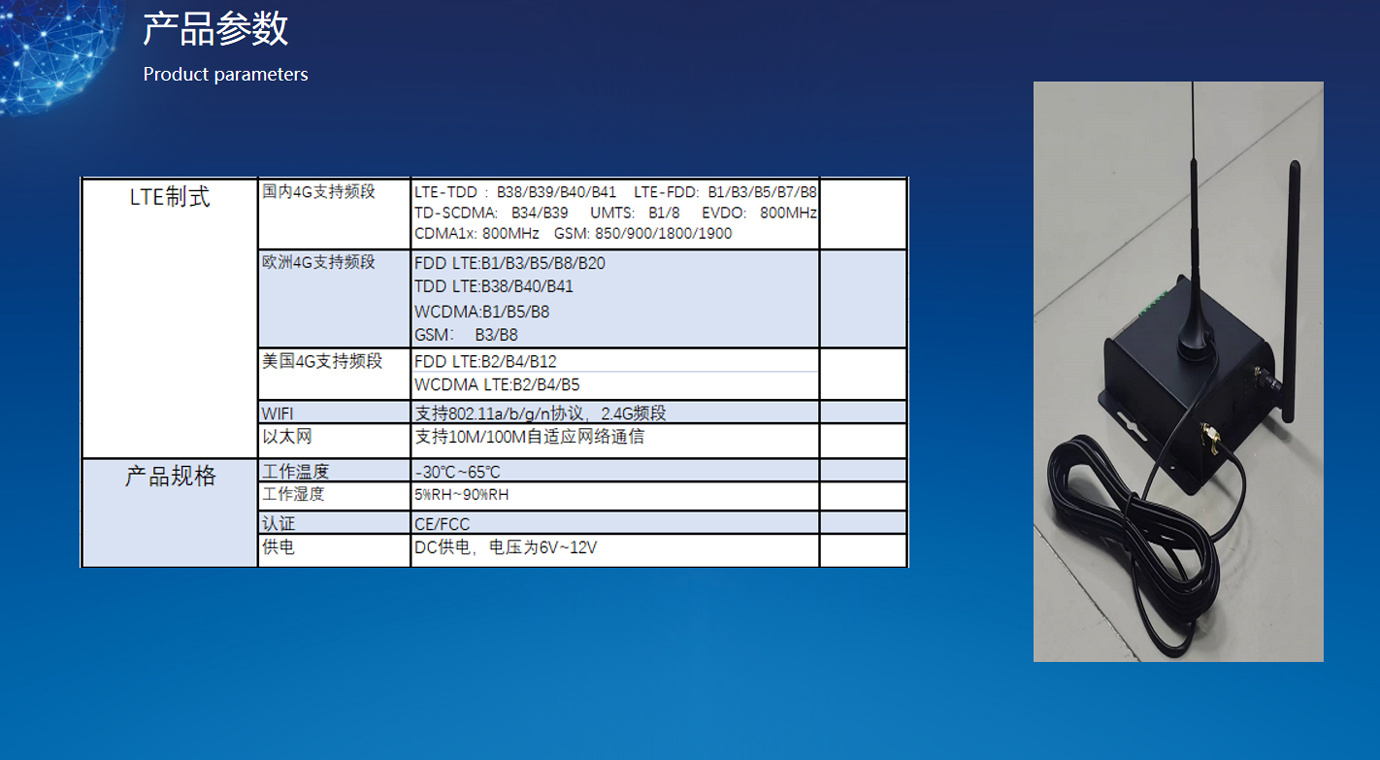

Category | Item | Parameters |
LTE Mode | Domestic 4G Bands | LTE-TDD: B38/B39/B40/B41LTE-FDD: B1/B3/B5/B7/B8TD-SCDMA: B34/B39UMTS: B1/8EVDO: 800MHzCDMA1x: 800MHzGSM: 850/900/1800/1900 |
| European 4G Bands | FDD LTE: B1/B3/B5/B8/B20TDD LTE: B38/B40/B41WCDMA: B1/B5/B8GSM: B3/B8 |
| US 4G Bands | FDD LTE: B2/B4/B12WCDMA LTE: B2/B4/B5 |
| WIFI | Supports 802.11a/b/g/n protocol, 2.4G band |
| Ethernet | Supports 10M/100M adaptive network communication |
Product Specs | Operating Temp | -30°C ~ +65°C |
| Operating Humidity | 5%RH ~ 90%RH |
| Certification | CE/FCC |
| Power Supply | DC power supply, voltage range: 6V~12V |
