Mass Concrete Solutions

 箭头  Background

     Mass concrete, English is concrete in mass. my country's "Construction Standard for Mass Concrete" GB50496-2018 stipulates that the minimum geometric size of concrete structures is not less than 1m. Concrete that causes harmful cracks due to temperature changes and shrinkage is called mass concrete.

    During mass concrete pouring, temperature monitoring is very important. When the temperature change exceeds the national standard, appropriate measures should be taken to cool down.

 箭头  Functional Requirements

  • · Monitor the real-time temperature of concrete.
  • · Battery powered, low power consumption.
  • · Wireless long-distance transmission of data, and wireless star networking with the same block of concrete.
  • · Temperature measurement products should be waterproof and anti-high temperature treatment.

 箭头  Feature Design

      Hengyi Technology has accumulated rich experience in the field of wireless transmission and sensors.

         Wireless transmission

                Mass concrete is composed of cement and steel bars. The initial water content and temperature of pouring are relatively high. Each mass concrete needs multiple measuring points. Each measuring point is divided into three parts: upper, middle, and lower. There is a certain distance between the points. The measuring point uses LORA for wireless data transmission, and uploads the concrete temperature data to the LORA gateway through LORA, and the LORA gateway uploads the data to the cloud server.

                LORA is a low-power, long-range, high-penetration wireless technology. It is very suitable for use in the scene of concrete temperature measurement.

         Sensor

                Hengyi Technology has obtained many patents on the development and application of TOF, temperature and humidity, and gas sensors. In the field of concrete temperature measurement, Hengyi Technology combined advanced sensor technology at home and abroad, and developed a high-precision digital temperature sensor module. This temperature measurement module can work in a high temperature soaking environment.

          Cloud Platform

                According to the characteristics of the concrete temperature measurement industry, Hengyi Technology has made a detailed design on its own cloud platform to make it more suitable for concrete temperature measurement according to national standards. Powerful and easy to use.

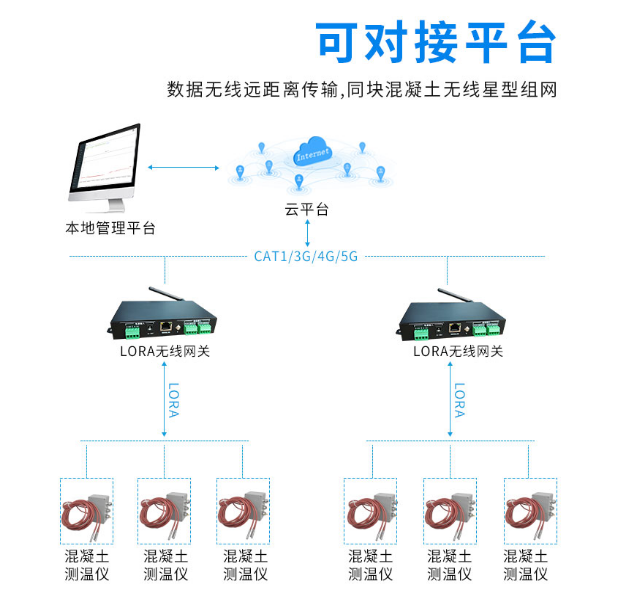

         Overall Functional Block Diagram

                总体功能框图

 箭头  Key Product Details

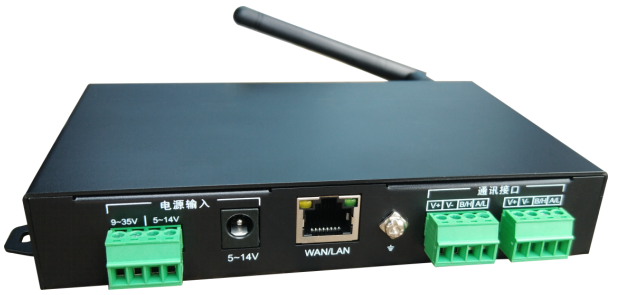

  • · Multifunctional Wireless Gateway

    多功能无线网关



    parameter description
    Master Master Industrial grade CPU, main frequency 540MHZ
    memory 64M Byte
    FLASH 32M Byte
    wireless 2G/3G/4 G FDD- LTE,TDD-LTE,DC-HSPA+/HSPA+/HSPANWCDMA,TD-SCDMA/GSM/GPRS/EDGE
    LORAI 430-434MHZ, others can be customized 913-918MHz
    line. SUB 1G (custom) 430-434MHZ, others can be customized 866-918MHz
    For External ☐ Data connection ☐ 1 Ethernet Interface, 2 LORA, 1 2G/3G/4G, 2 RS485 high-speed interface
    supply voltage DC 12V-36V input
    Work environment Working temperature-10C-75C, humidity 0%-90% RH
    Current consumption Working current:<200mA/24V,Maximum current: 1000mA/24V
    Software Agreement operating system LNUX 3.4
    Network Protocol IP,TCP,UDP,HTTP,HTTPS
    Wireless Protocol LORA, WIFI protocol, ad hoc network LORA protocol
    RS485 MOBUS, custom 485 communication protocol

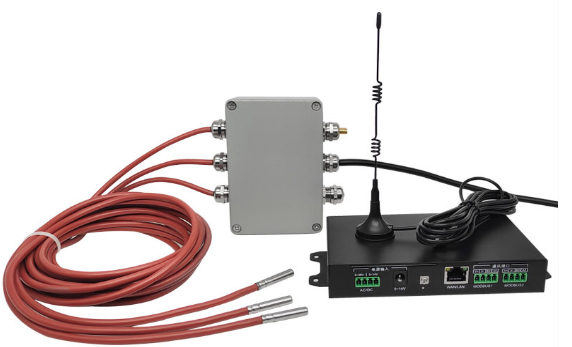

  • · Concrete Temperature Monitoring Unit

    混凝土温度监测单元



    parameter description
    Temperature Range -40C-120"C
    Wireless Transfer Protocol LORA
    waterproof grade IP68
    working temperature -40C-80C
    Power supply 2000MA lithium battery powered
  • · Concrete Temperature Measurement Cloud Platform

    The concrete temperature measurement cloud platform is designed separately for the characteristics of the concrete department, and can be managed separately for the project or for the temperature measurement points. Data can be displayed in a variety of ways, very intuitively displayed in front of the user

    混凝土测温云平台

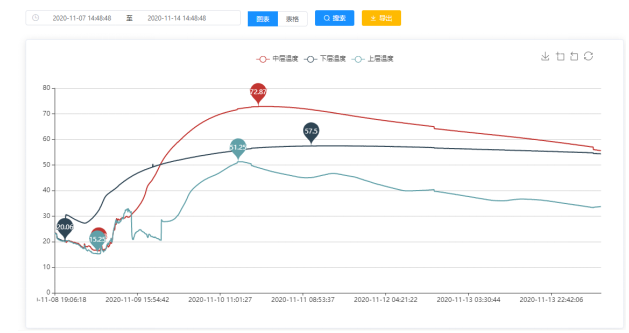

    Concrete Cloud Platform Historical Data Exhibition

    混凝土云平台历史数据展示

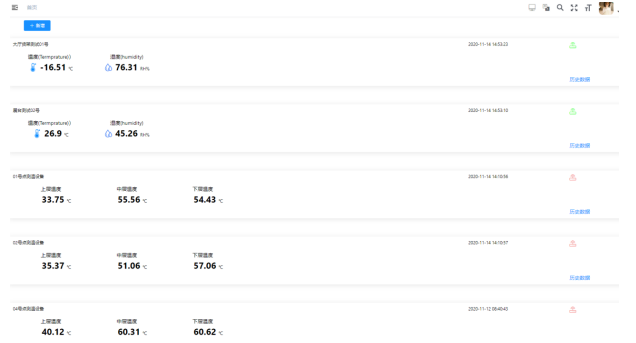

    Cloud Platform Homepage Data Display

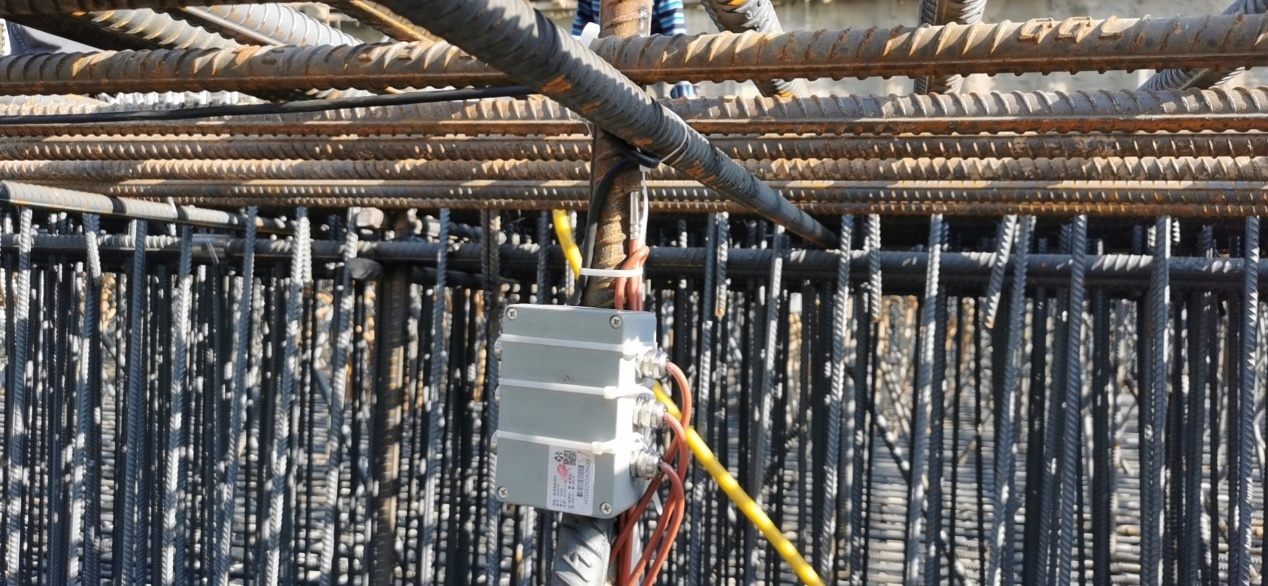

 箭头 Finished Construction Site

    成品施工现场1     成品施工现场2

 Construction Site Of China Construction Eighth Bureau
