Three Small Places Gas Alarm Solution

一．Background

In the past few years, there have been many gas leakage and explosion accidents, which have caused huge losses to people's lives and properties. If gas leakage can be detected in time, the explosion can be prevented. The following are two of the many gas accidents in 2021, and many more, which can be found in the website and newspaper news.

一．背景



一．背景

These accidents can be prevented. There are many signs before the accident. Our company makes full use of sensors, alarm gateways, and cloud platform to construct a gas early warning system.

二．Ito function realization



2.1 Overall function

Our company has developed a gas leakage early warning system for these gas explosion accidents. This system consists of gas sensor, local alarm system, gas alarm gateway, and cloud platform.

There are five types of gas alarms for different sites, carbon monoxide sensor, methane sensor, propane sensor, carbon monoxide and propane alarm, and explosion-proof gas alarm. Carbon monoxide sensors are used in closed places to use carbon monoxide produced by insufficient combustion of gas, such as bathrooms. There are two types of domestic gas, one is pipeline gas, and the other is liquefied gas, which is stored in a rigid bottle. The composition of these two types of gas The main component of the pipeline gas is methane, and the main component of the liquefied gas is propane. Propane sensors are recommended for households using bottled gas and small-scale sites, and propane sensors are recommended for households and small-scale sites that use piped gas. Explosion-proof sensors are recommended for large-scale gas and bottled gas. Gas alarm.

Each gas sensor has a built-in high-decibel alarm horn. When the alarm detects gas leakage, the alarm horn starts to alarm.

For the three small places, our company has developed a gas wireless alarm gateway. This wireless gateway supports 100MBPS/1000MBPS Ethernet and 4G/5G mobile wireless communication externally, and supports LORA, LORA WAN, RS485, 100MBPS/1000MBPS Ethernet. The gas alarm and sound and light alarm are connected to the alarm gateway through RS485/LORA, and the network camera and network speaker are connected to the alarm gateway through RJ45/WIFI. When the gas alarm occurs, the gas alarm reports the alarm information, and the gas alarm gateway receives the alarm information. Take the following actions respectively: 1. Start the local wireless sound and light alarm and network alarm speaker 2. Report the alarm signal to the cloud server 3. Upload the picture of the network camera site to the cloud server 4. Generate the alarm for 10 seconds before and 10 seconds after the alarm is generated The video is uploaded to the cloud server.



The main functions of the cloud platform are responsible for equipment management, alarm management, and traffic management of mobile communication.

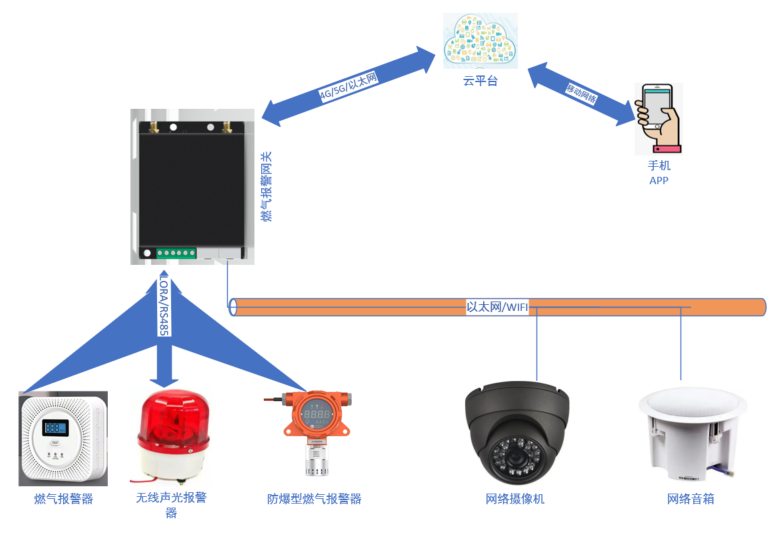

The composition of the whole system is as follows:



糸统功能实现



   2.2 Gas alarm

            The following introduces the alarms used in this system.

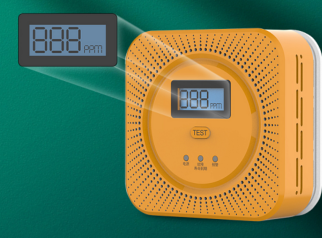

  • carbon monoxide alarm

            When the combustion of gas, coal, carbon and other combustibles is insufficient, carbon monoxide is produced. Carbon monoxide is a toxic gaseous gas, which is mainly used in indoor environments without ventilation.

     一氧化碳报警器

Project  Parameters


detect vapour carbon monoxide


Detection principle Electrochemistry


Detection range

0~500PPM


Alarm method Audible alarm


Networking NB-IOT,CAT1,LORA,WIFI,Bluetooth


External communication method

RS485


Installation method Ceiling/Wall Mount

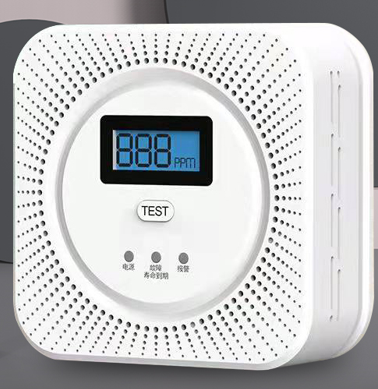

  • Gas alarms (including methane and propane)

  燃气报警器（含甲烷和丙烷）

             Its parameters are as follows:

Project Parameters


detect vapour Methane or propane (choose one)


Detection principle Electrochemistry


CH4 detection range

0~50%LEL


Alarm method Audible alarm


Networking NB-IOT,CAT1,LORA,WIFI,Bluetooth


External communication method

RS485


Installation method Ceiling/Wall Mount

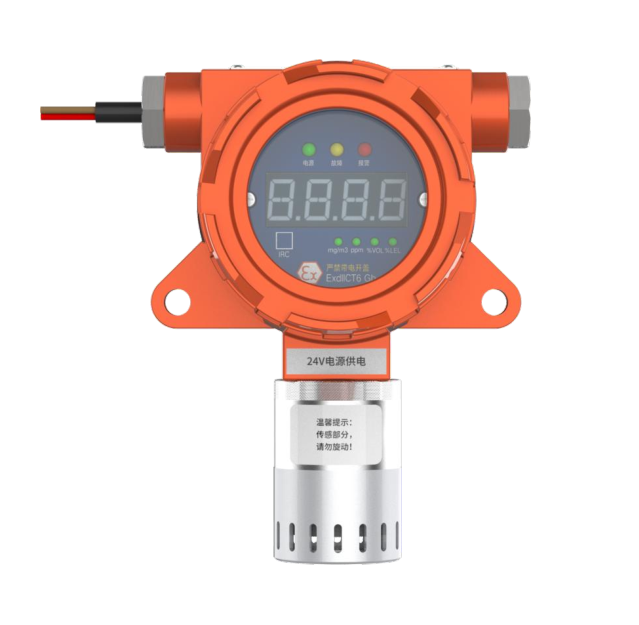

  • Explosion-proof gas alarm

            The explosion-proof gas alarm can detect the content of various gas in the air,

           防爆型燃气报警器

project parameter


detect vapour flammable gas


Detection principle Cui Hua burns


Measuring range 0~100%LEL


certification Explosion proof, Exd IIC T6 IP66


Alarm method Sound and light alarm / a group of passive relay output


Networking Optional NB-IOT, CAT1, LORA, WIFI, Bluetooth


External communication method

RS485/4~20mA


Installation method Ceiling/Wall Mount


configuration Support infrared remote control







    2.3Gas alarm gateway

  • Product Features

The main function of this gateway is to combine sensor data with video, superimpose the data connected to the sensor on the gateway to the video of the camera on the gateway, the data of the sensor can be linked with the video, and set the alarm valve for the data of the sensor If the number of sensors reaches the alarm condition, the camera will be linked with the sensor on the same gateway. The gateway will capture a picture and a short video 10 seconds before and 10 seconds after the alarm from the camera, and send it to the designated platform.

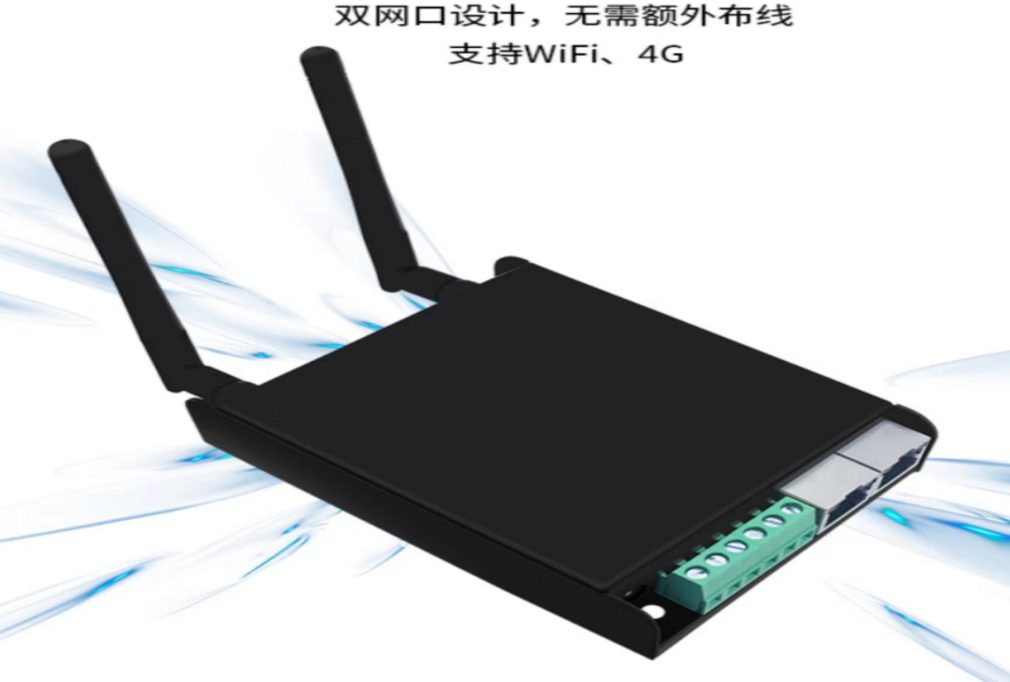

  • Product Image

燃气报警网关





  • Product parameters

Project

Parameters

Notes

Product features

Character overlay function

Cameras supporting ONVFI protocol



Support Hikvision, Dahua, Uniview and other brands of cameras



Fast transmission, 0.5 seconds to complete the configuration



When characters are superimposed, the video quality will not be affected



Intelligent recognition, the characters automatically change color, the camera bottom layer protocol is connected, and the light and shade in the picture are intelligently recognized.



The alarm threshold can be set for the sensor. When the sensor reaches the alarm threshold, the alarm video and pictures can be uploaded to the designated server.







Mobile wireless function

Support WIFI hotspot function



LTE supports three mode options, including domestic, European, American, and domestic support for all Netcom



Support Ethernet and 3G/4G/5G uplink and downlink data backhaul, support automatic switching.



System Features

Support foreign TTN server



Support Chinese/English interface switching and local time setting



Support remote administrator login, maintenance and repair



Support MQTT, support WEB interface management



Support button or WEB operation to restore factory settings



LTE standard

Domestic 4G supported frequency bands

LTE-TDD : B38/B39/B40/B41   LTE-FDD: B1/B3/B5/B7/B8   TD-SCDMA: B34/B39   UMTS: B1/ 8   EVDO: 800MHz   CDMA1x: 800MHz   GSM: 850/900/1800/1900



European 4G supported frequency bands

FDD LTE: B1/B3/B5/B8/B20

TDD LTE:B38/B40/B41

WCDMA:B1/B5/B8

GSM:  B3/B8



US 4G supported frequency bands

FDD LTE:B2/B4/B12

WCDMA LTE:B2/B4/B5



WIFI

Support 802.11a/b/g/n protocol, 2.4G frequency band



Ethernet

Support 10M/100M adaptive network communication



Product Specifications

Working temperature

-30℃~65℃



Working humidity

5%RH~90%RH



Certification

CE/FCC



Power

DC power supply, the voltage is 6V~12V





  2.4Gas early warning platform

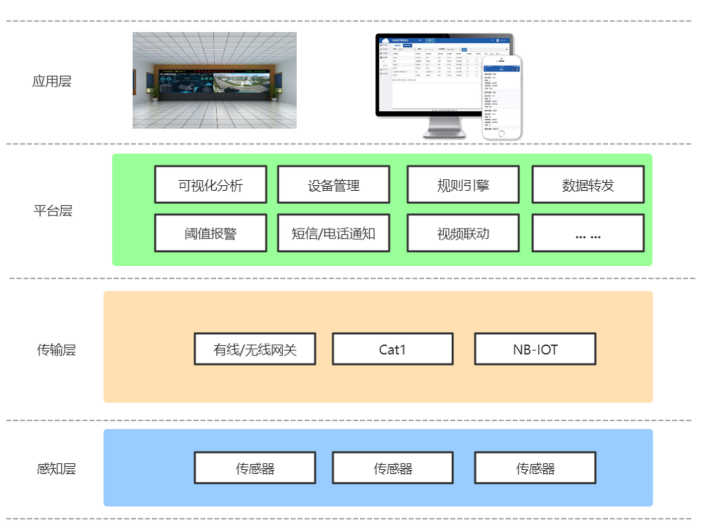

       2.4.1 Overall framework of gas early warning platform

           The overall framework of the gas early warning platform is as follows



燃气预警平台的整体框架

       2.4.2The functions of the gas alarm platform are as follows:

  • Support multi-level user management, each level of user has different permissions.
  • Support a variety of alarm methods, SMS alarm, telephone alarm, APP software alarm. The alarm content is clear, and it supports video, pictures, and sensors to alarm together.
  • Supports mobile traffic management.



三．Device List

Below are the gas alarms sold by our company:



Products

Model

Parameters


Notes

Carbon monoxide


  1. Detect the content of CO.

2 Built-in LORA WAN wireless module.



Support NB/IOT,CAT1

A       alkane



1Detect the content of methane.

2 Built-in LORA WAN wireless module.



Support NB/IOT,CAT1

Propane       alkane



1Detect the content of propane.

2 Built-in LORA WAN wireless module.



Support NB/IOT,CAT1

Carbon monoxide and propane two in one



1Detect the content of propane and carbon monoxide.

2 Built-in LORA WAN wireless module.



Support NB/IOT,CAT1

Explosion-proof gas alarm



1 Detect the content of gas.

2 Built-in LORA WAN wireless module.



Support NB/IOT,CAT1

Gas Alarm Gateway


  1. Support 4G/5G and Ethernet.
  2. Support LORA wireless communication
  3. Support RS485 communication
