Cat1(4g) Temperature And Humidity Wireless Monitoring System

 箭头  Background

       From the second half of 2020, under the condition that the coverage of 4G/5G mobile communication base stations is relatively complete, operators will gradually suspend the access of 2G terminals to the network. China Unicom, Telecom began to terminate the service of 2G base station. Several major operators have put their energy on emerging new mobile IoT technologies such as CAT1 and NB. Among them, CAT1 is a low-speed 4G Internet of Things solution, which can use the existing mobile base station, without the need to build a new mobile network base station, and can perfectly replace the existing GPRS communication module.

 箭头  Function

         ⚪  It can monitor the temperature and humidity of various environments in real time.

         ⚪  The networking is convenient and fast.

         ⚪  Support cloud platform, display real-time temperature and humidity data, and save historical data.

         ⚪  The platform realizes multi-user management.

 箭头  System Composition

      The System Consists Of Three Parts: Wireless Transmission, Temperature And Humidity Sensor, And Cloud Platform.

          ⚪  Wireless Transmission

                      The wireless transmission technology uses a combination of LORA, 2G/3G/4G/5G/CAT1 (mobile network) and Ethernet. Use LORA locally to transmit sensor data to the gateway, which in turn transmits the data to the platform via a mobile network or Ethernet. Wireless transmission adopts a variety of technologies to ensure the convenience of networking, long transmission distance and low power consumption.

          ⚪  Temperature And Humidity Sensor

                       For different temperature measurement scenarios, our company has developed a variety of temperature and humidity, temperature sensors. Our temperature measurement sensors are divided into ordinary places, high humidity places, and non-contact rapid temperature measurement. The temperature and humidity sensors in ordinary places are made of imported materials and use our company's dedicated temperature and humidity calibration algorithm, which can accurately detect the temperature and humidity of the monitored places. The temperature and humidity sensors in high-humidity places are adapted to work in high-humidity environments. General temperature and humidity sensors cannot work in high-humidity environments for a long time. Our company uses advanced production technology and long-term soaking tests. Work in a high humidity environment. The non-contact temperature sensor uses the principle of infrared optical technology to detect the temperature of the measured object by detecting the infrared wavelength of the measured object.

          ⚪  Cloud Platform

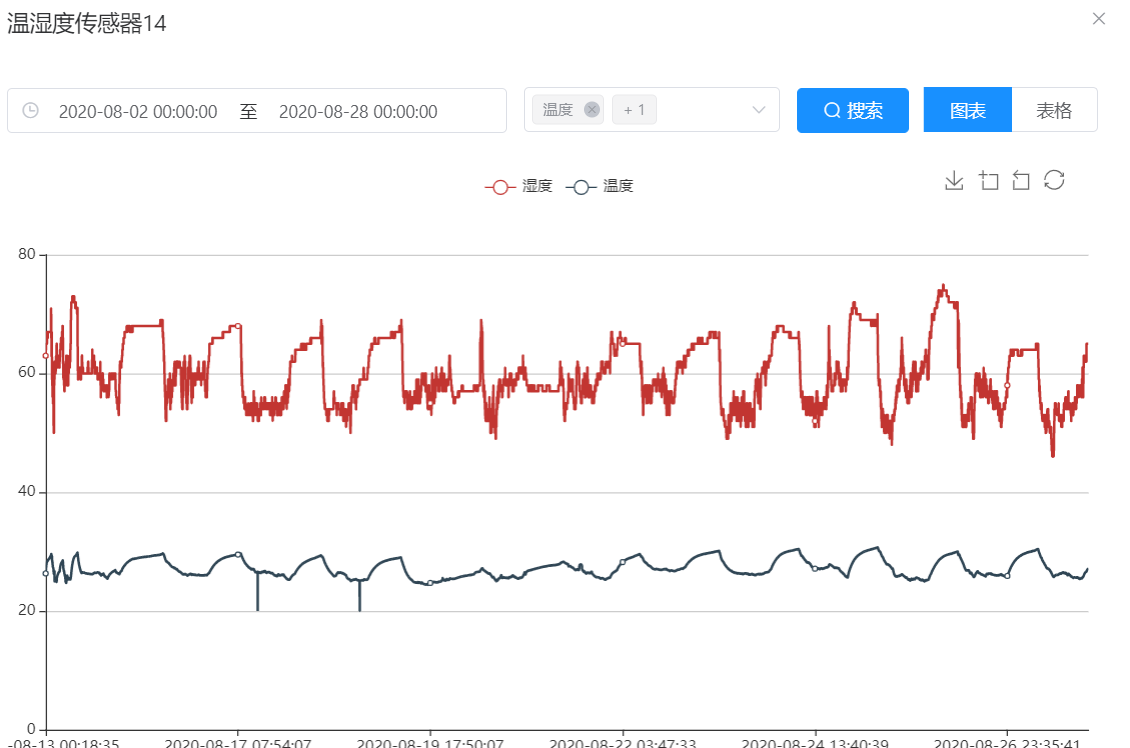

                       The cloud platform provides powerful device management capabilities and data processing capabilities. The cloud platform can manage the equipment in real time, and maintain the equipment status, installation information and location information in a unified manner. The powerful data processing capability of the platform can display, save and analyze the data uploaded by the device.

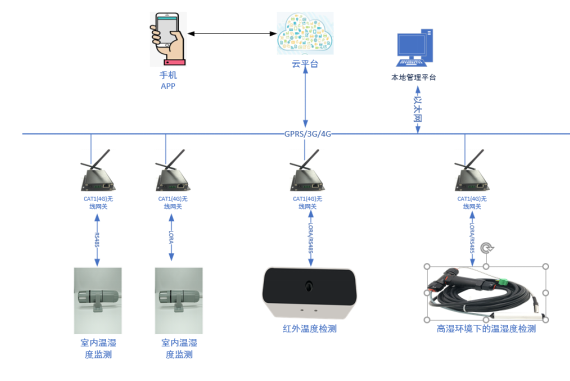

          ⚪ Overall Functional Block Diagram

                      总体功能框图

 箭头  System Application Workplace

      农业大棚                                         博物馆

                                               Agricultural                                                                                                                                               Greenhouses

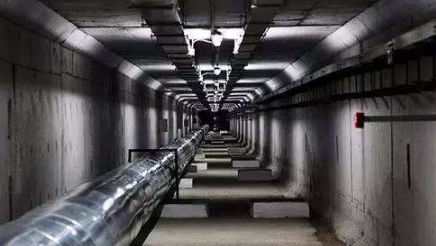

地下管廊                                                   图书馆

                                              Underground Pipe Gallery                                                                                                                                             Library

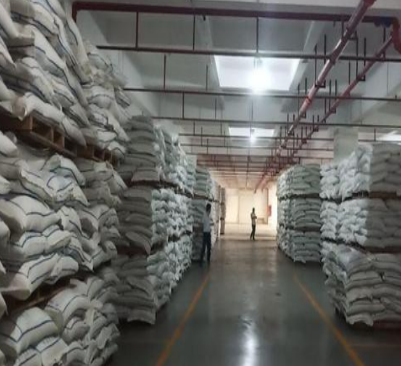

粮食仓库                                                   冷链物流

                                              Grain Warehouse                                                                                                                                          Cold Chain Logistics

 箭头  Detailed Introduction Of Key Products

         ⚪  It can monitor the temperature and humidity of various environments in real time.

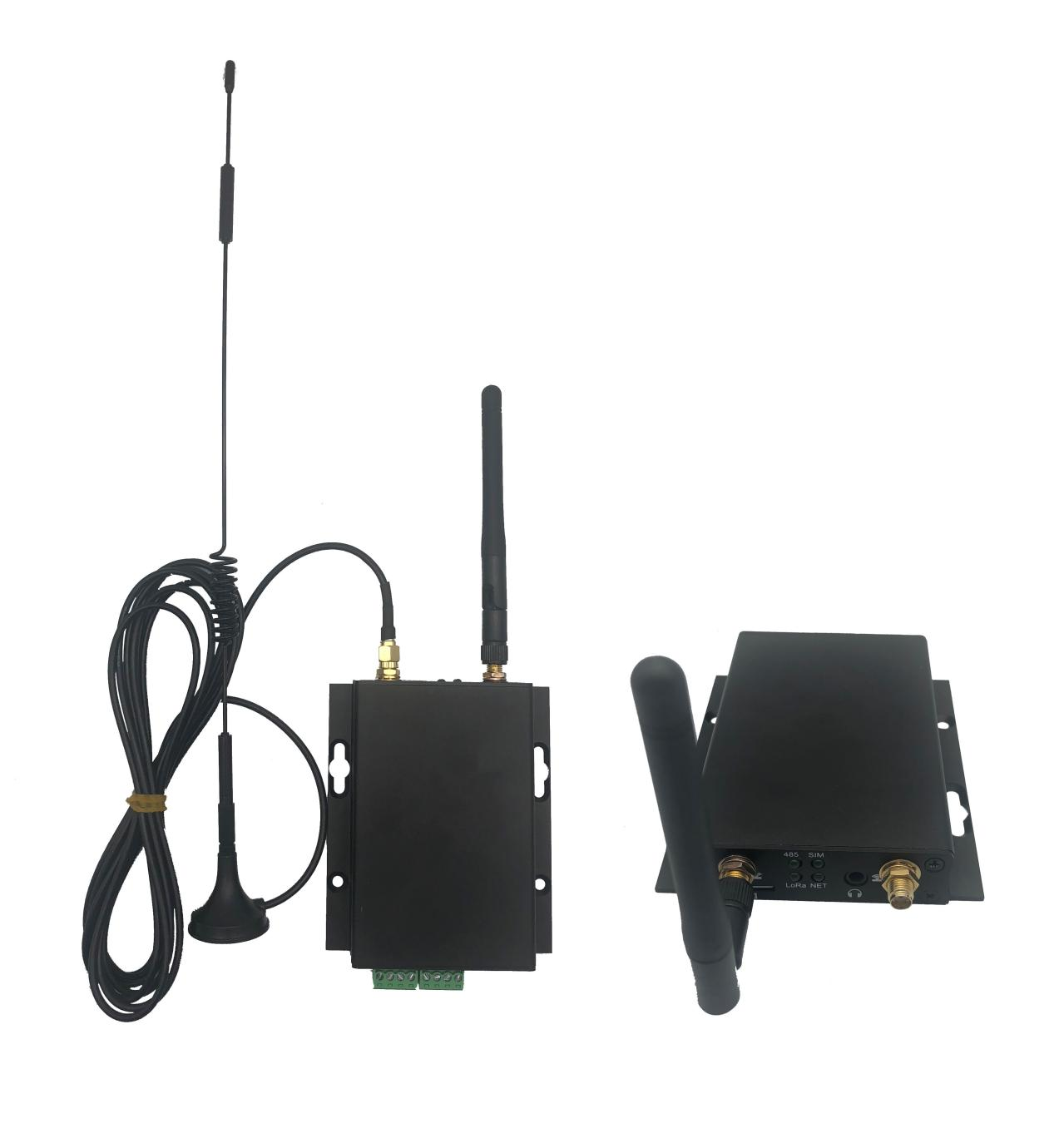

                   CAT1(4G)多功能无线网关

             Function Parameter

Parameter Describe
Mobile Network Support GSM/GPRS&<E Cat1
Wireless Network Speed GPRS: Maximum 85.6Kbps(DL)/85.6Kbps(UL)
FDD-LTE: non-CA Cat1, max 10Mbps(DL)/5Mbps(UL)
TDD-LTE: non-CA Cat1, max 8Mbps/2Mbps(UL)
Local Wireless LORA private protocol, supports wireless communication between 315MHZ~923MHZ
Power Level

GSM850:+33dBm

EGSM900:+33dBm

DCS1800:+30dBm

PCS1900:+30dBm

LTE:+23dBm

LORA:+22dBm
Power Supply 8~32V, regardless of positive or negative
External Data Interface One RS485, one I/O, one USB TYPE C (for DEBUG)
Indicator Light 4, respectively representing RS485, LORA, SIM, NET
4G Parameters

FDD-LTE:B1,B3,B5,B8

TDD-LTE:B34,B39,B40,B41，

GSM/GPRS:900/1800MHZ
Audio Output All the way, support text-to-speech

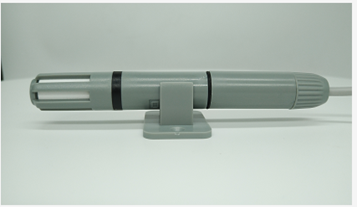

            Temperature and humidity monitoring in ordinary environment (HYH1L65)

           普通环境下的温湿度监测（HYH1L65）

           Function Parameter

   Function

  Parameter



    Remark



  Temperature Measurement Range



  -40℃~125℃







   Measurement Accuracy



  ±0.5℃







  Temperature Working Range



  -40℃~125℃







  Humidity Measurement Range



  0~100%RH







  Operating Temperature/humidity



  -30℃~60℃/0%RH~80%RH







  Accuracy



  ±3%RH







  Transfer Method



  RS485,LOAR

Wireless Transmission







  Use Sensor



  SHT31-DIS-P









               Single Point Infrared Temperature Measurement (hyt1814-d05)

                高湿环境下的温湿度检测(HYH1515)


               Function Parameter



Function Parameter Remark
Temperature Measurement Range

-50℃~150℃


Measurement Accuracy

±0.5℃


Humidity Measurement Range

0~100%RH


Operating Temperature

-30℃~60℃


Precision

±3%RH


Transfer Method

RS485,LOAR Wireless Transfer


Reliability Anti-static, Anti-dust, Effectively Resist Various Corrosive Gas Substances


Humidity Sensor

HS110LF(France Humirel)


Temperature Sensor









               Cloud Platform
