Function Description Of Multifunctional Edge Gateway

一.Background

    In the field of artificial intelligence, everyone has been focusing on the intelligence of image algorithms. In fact, sensor perception is the cornerstone of artificial intelligence, providing a lot of useful data for human engineering intelligence. At present, in the field of artificial intelligence, sensor data and AI algorithms are separated.

二.Function

      2.1 Features

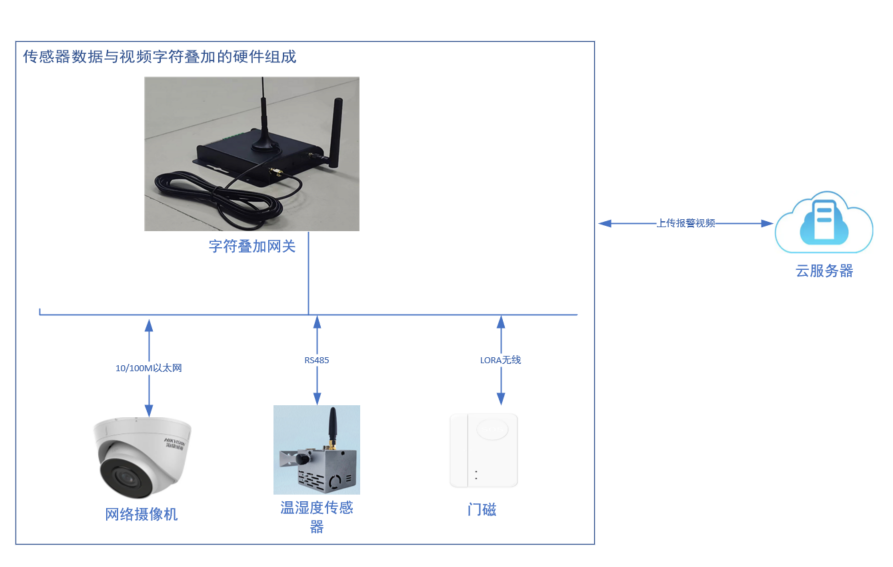

    Our company has developed a multi-functional edge gateway. The main function of this gateway is to combine sensor data with video, and superimpose the data connected to the sensor on the gateway to the video of the camera on the gateway. Video linkage, set the alarm threshold for the sensor data, and the number of sensors reaches the alarm condition, the camera will be linked with the sensor on the same gateway, and the gateway will capture a picture from the camera and a segment 10 seconds before and 10 seconds after the alarm The short video will be sent to the designated platform. Its block diagram is as follows:

功能介绍

    On the basis of traditional character superposition, this solution adds support for wireless sensors, and now supports LORA, LORA WAN sensors. It also supports 2G/3G/4G/5G, and can upload alarm videos. The effects are as follows:

功能介绍 2

      2.2  How to use

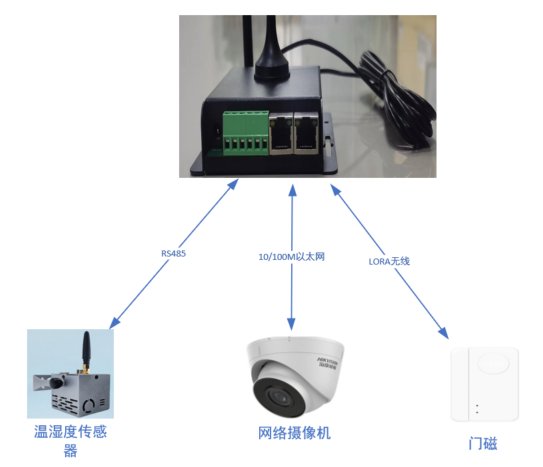

  • How to use a single character stacker

使用方式1

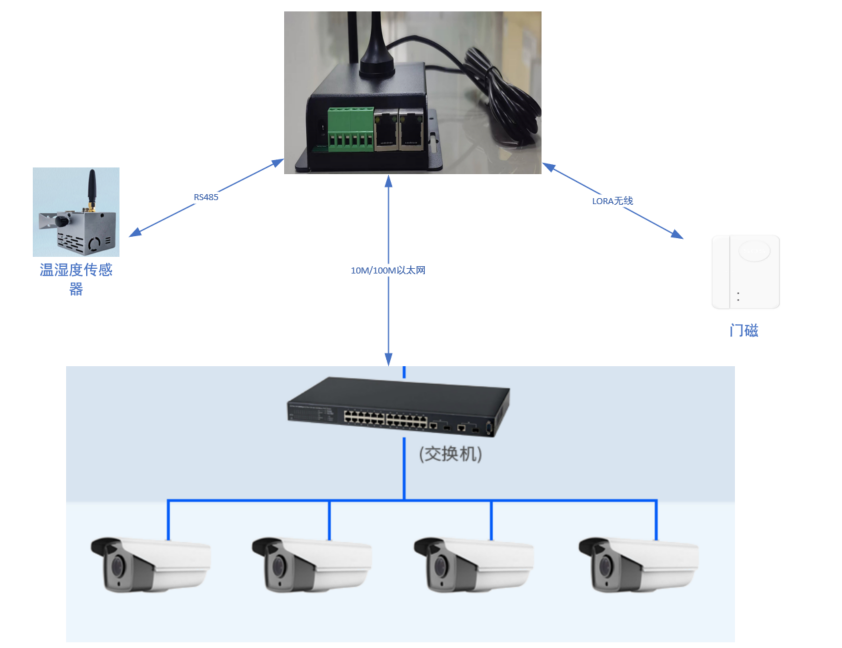

  • Use with a Router

与路由器配合使用

三.Product application direction

    The character stacker, strictly speaking, is a small system and cannot be regarded as a single product. The application direction of this small system is as follows:

      3.1 Agriculture

    Modern agricultural greenhouses need a lot of sensors and controllers to work together. In the past, some sensors and instruments would be placed in the greenhouse, and special people would patrol regularly. Now we can use our character stacker to be unattended.

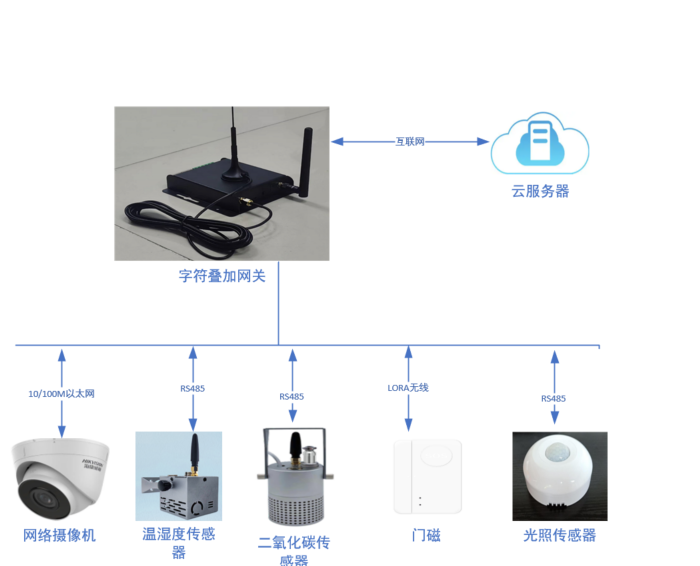

   The specific application method is: connect the camera, temperature and humidity sensor, CO2 sensor, light sensor, door sensor sensor in the agricultural greenhouse to the character overlay gateway. When a certain sensor data in the greenhouse is abnormal, the character overlay gateway will put the sensor abnormal The reason is superimposed on the video, and the picture of the scene, the video and sensor data of 10 seconds before and after are sent to the cloud server, and the cloud server is pushed to the customer. The user can perform remote operation according to the live video. The block diagram is as follows:

   农业

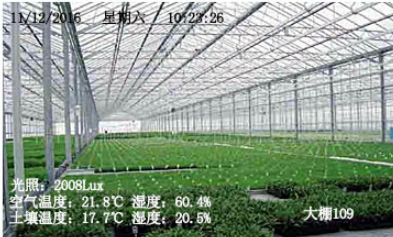

    The effect is as follows:

     使用效果如下:

    The advantages of this scheme are as follows:

  • Agriculture is generally an effective area, using the traffic of the mobile network. Using this solution, users only watch when they need it. It saves mobile traffic for users.
  • Video and data can be watched synchronously, which can make the line unattended.

      3.2 3.2 Data room

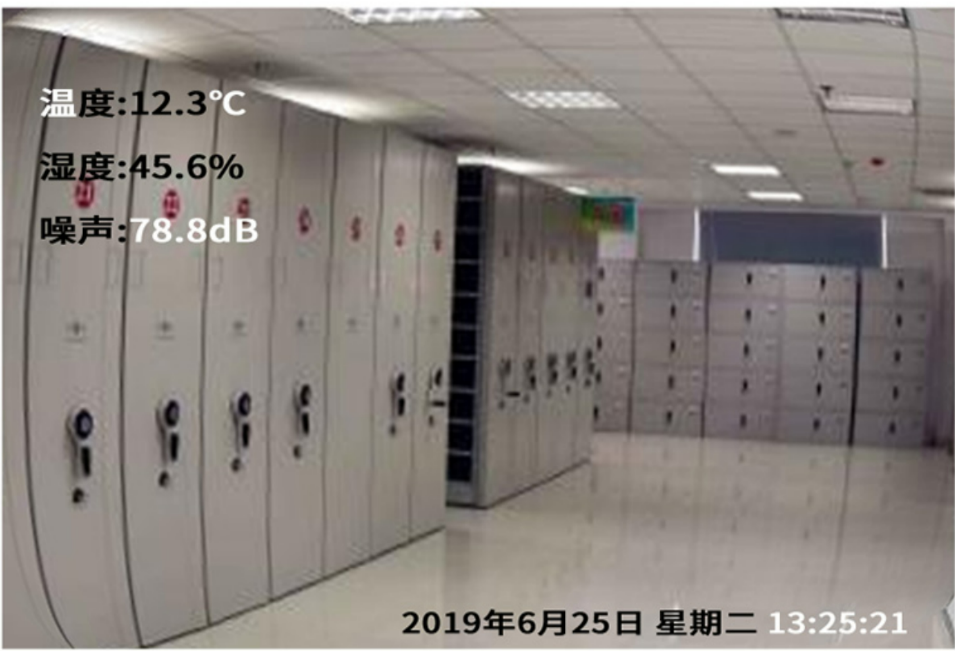

        The use effect is as follows

       使用效果如下

      3.3 Industrial Manufacturing

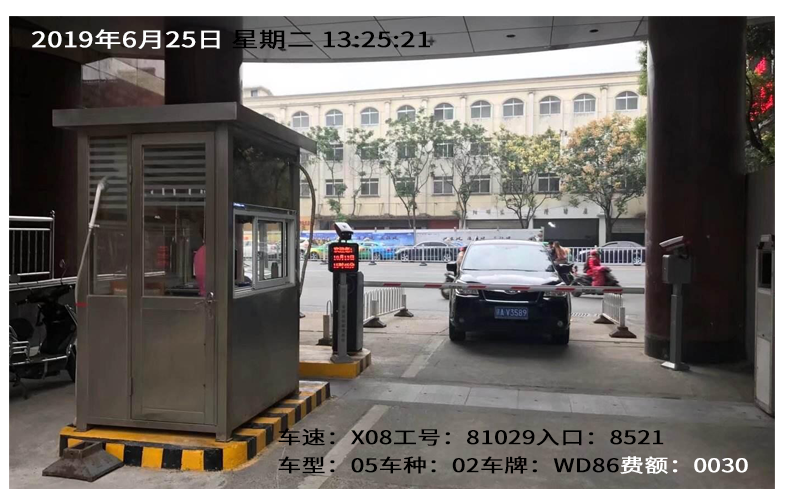

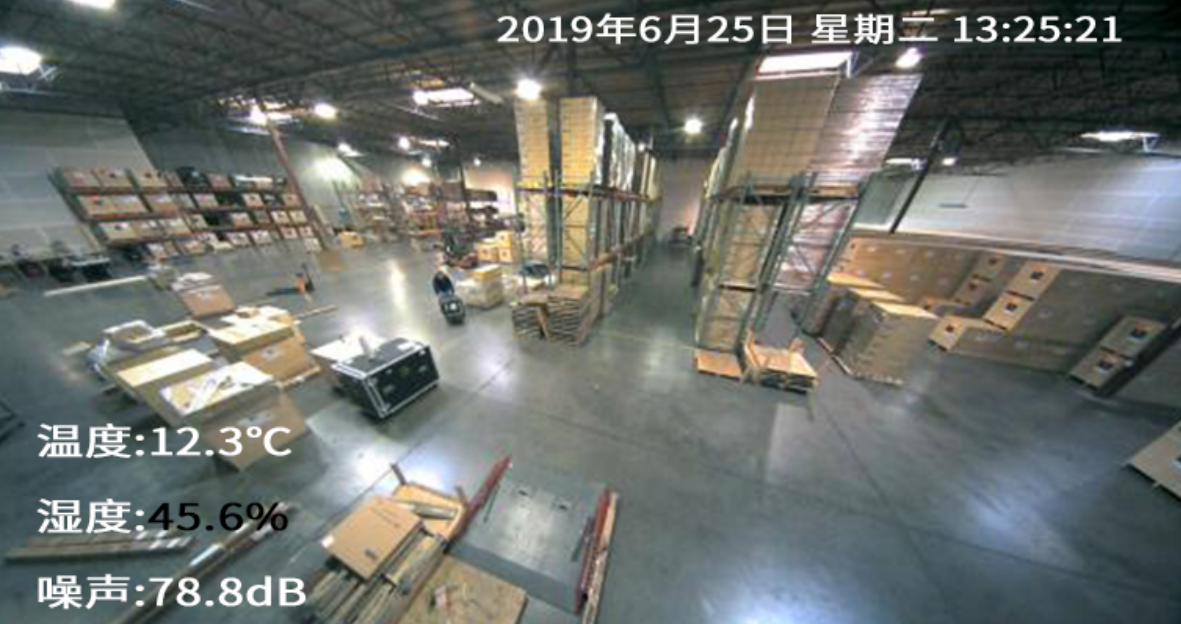

        Its use effect is as follows:

     工业制造

四.Product Parameters

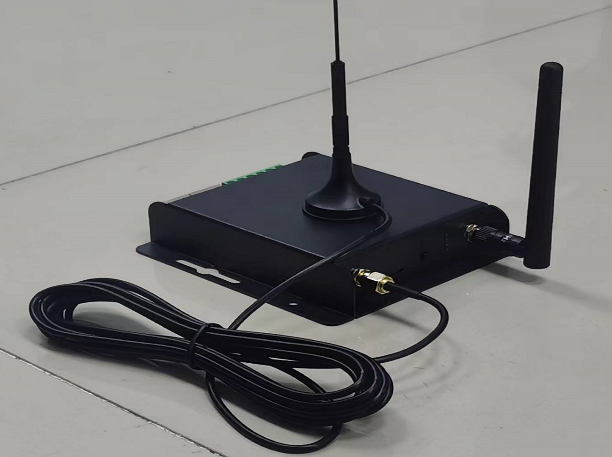

  • Product Image

  产品图片

  • Product Parameters



Project Parameter Remark
Product Function Character Overlay Function Cameras supporting ONVFI protocol can superimpose characters on up to 8 cameras at the same time


Support Hikvision, Dahua, Uniview and other brands of cameras


The Transmission Is Fast, And The Configuration Is Completed In 0.5 Seconds


When characters are superimposed, the video quality will not be affected


Intelligent recognition, automatic color change of characters, docking of the underlying protocol of the camera, and intelligent identification of the light and shade in the painting.


The alarm threshold can be set for the sensor. When the sensor reaches the alarm threshold, the alarm video and pictures can be uploaded to the designated server.






Mobile Wireless Capabilities Support WIFI hotspot function


LTE Supports Three Mode Options, Including Domestic, European, American, And Domestic Support For Full Netcom


Support Ethernet And 3g/4g/5g Uplink And Downlink Data Backhaul, Support Automatic Switching.


System Functions Support Foreign TTN Server


Support Chinese/English interface switching and local time setting


Support Remote Administrator Login, Maintenance And Repair


Support Mqtt, Support Web Interface Management


Support button or WEB operation to restore factory settings


LTE Standard Domestic 4G Support Frequency Band

LTE-TDD : B38/B39/B40/B41   LTE-FDD: B1/B3/B5/B7/B8   TD-SCDMA: B34/B39   UMTS: B1/8   EVDO: 800MHz   CDMA1x: 800MHz   GSM: 850/900/1800/1900


4G Supported Frequency Bands In Europe

FDD LTE:B1/B3/B5/B8/B20

TDD LTE:B38/B40/B41

WCDMA:B1/B5/B8

GSM：  B3/B8


Us 4g Supported Frequency Bands

FDD LTE:B2/B4/B12

WCDMA LTE:B2/B4/B5



WIFI

 Support 802.11a/b/g/n protocol, 2.4G frequency band


Ethernet Support 10M/100M adaptive network communication


Product Specifications Operating Temperature

-30℃~65℃


Working Humidity

5%RH~90%RH


Certification

CE/FCC


Powered By DC power supply, voltage is 6V~12V
