Thermal Resistance Temperature Acquisition Scheme





Thermal Resistance

Temperature Acquisition Scheme

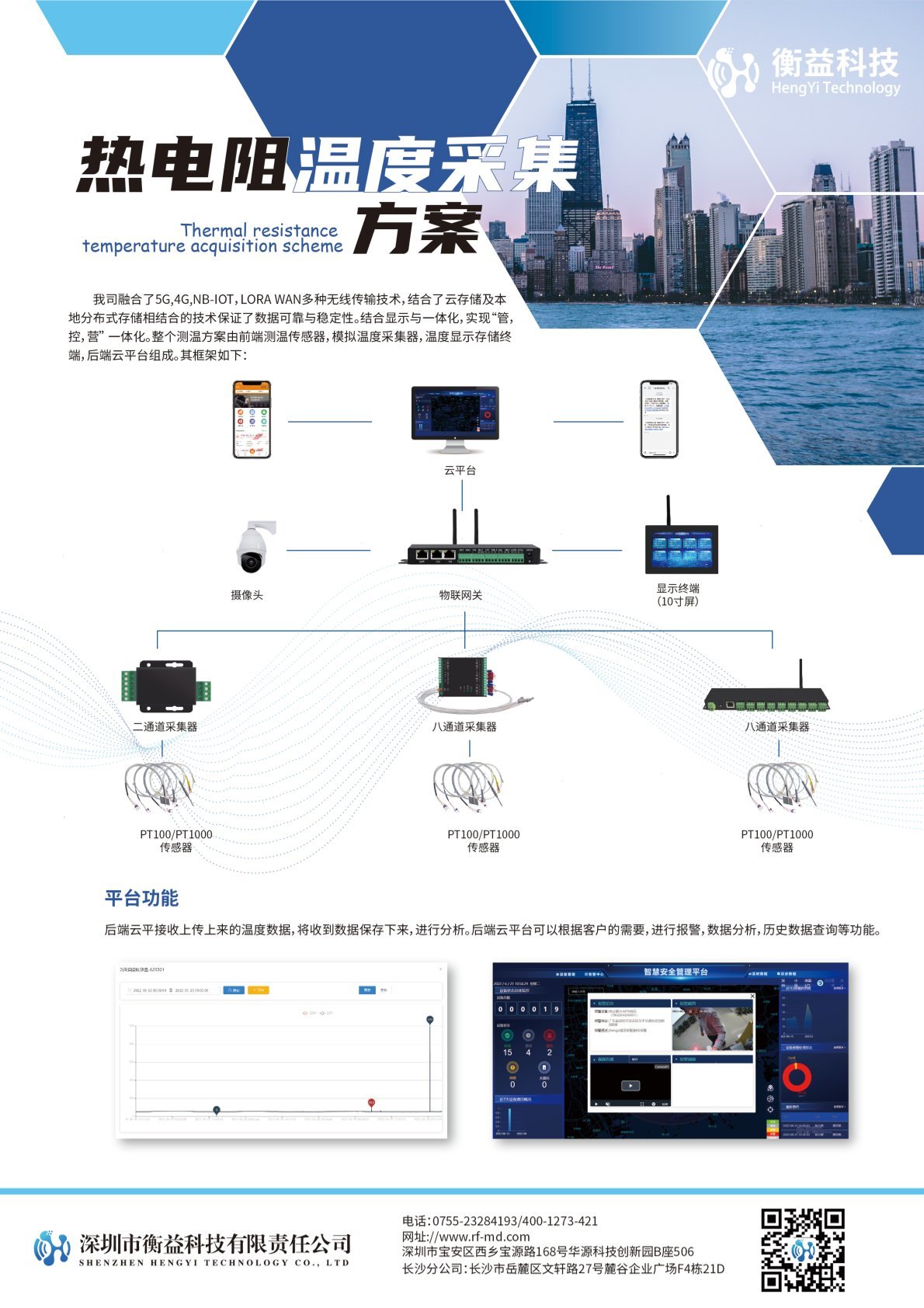

Our company integrates multiple wireless transmission technologies including 5G, 4G, NB - IOT, and LORA WAN, and combines cloud storage with local distributed storage technology to ensure data reliability and stability. By integrating display and system integration, we achieve the integration of "management, control, and operation". The entire temperature measurement solution consists of a front - end temperature sensor, an analog temperature collector, a temperature display and storage terminal, and a back - end cloud platform. Its framework is as follows:







Platform Functions



The back - end cloud platform receives the uploaded temperature data, saves the received data and conducts analysis.

The back - end cloud platform can realize functions such as alarm, data analysis, and historical data query according to customer needs.

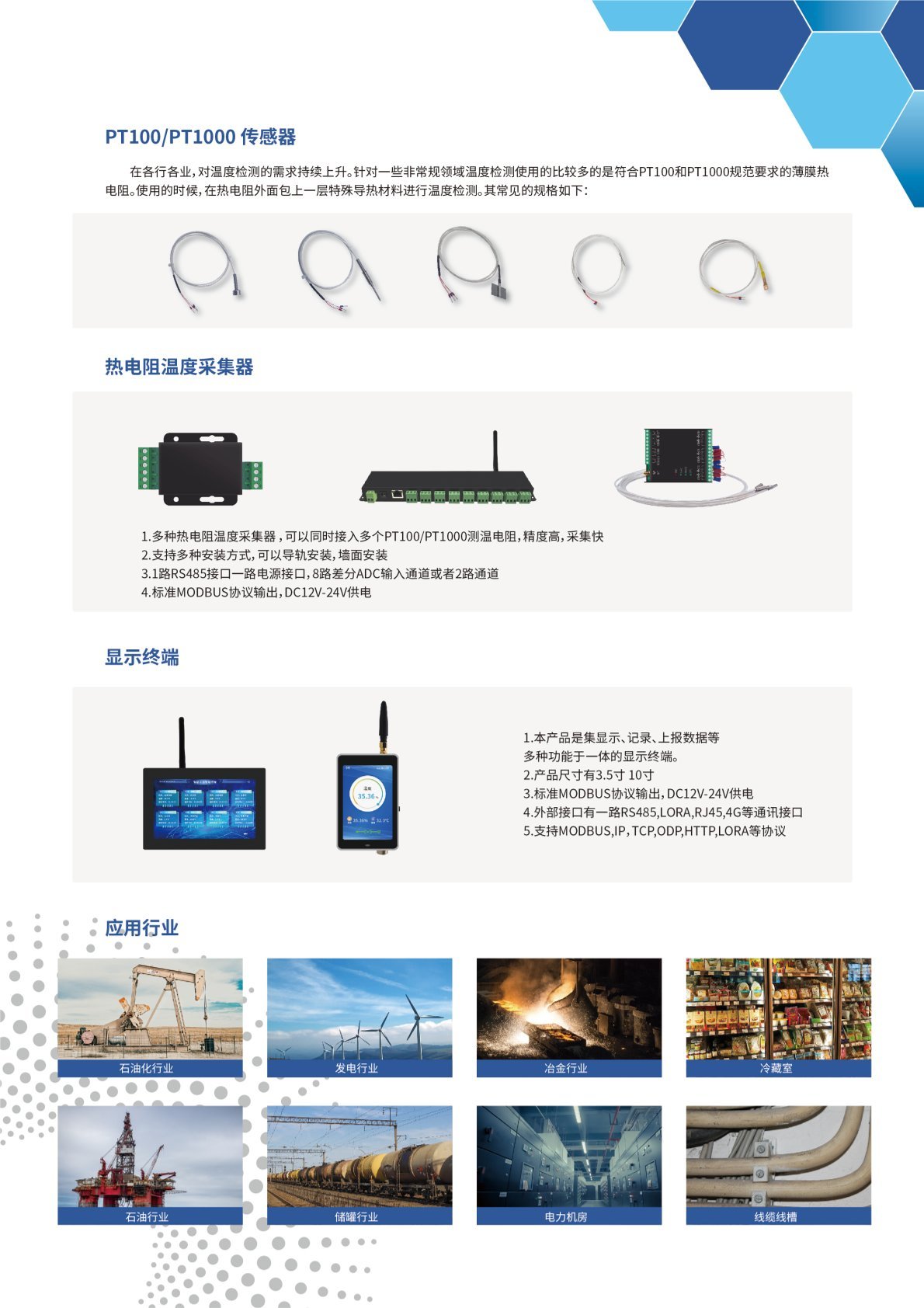

PT100/PT1000 SensorsPT100/PT1000 Sensors

In various industries, the demand for temperature detection continues to rise. For temperature detection in some non - conventional fields, thin - film thermal resistors that meet the specifications of PT100 and PT1000 are widely used. During use, a layer of special thermally conductive material is wrapped around the thermal resistor for temperature detection. Its common specifications are as follows:



Thermal Resistance Temperature Collector

•Multi-Sensor Support:​ Simultaneous connection to multiple PT100/PT1000 sensors with high precision and fast sampling.
•Flexible Mounting:​ Supports both DIN-rail and wall mounting.
•I/O Interfaces:​ 1 × RS485, 1 × Power Port; 8 differential ADC input channels (or 2 channels).
•Protocol & Power:​ Standard MODBUS RTU protocol; DC 12V–24V wide-range power supply.



Display Terminal

•Integrated Design:​ Combines display, data recording, and data reporting functions into a single unit.
•Size Options:​ Available in 3.5-inch and 10-inch display sizes.
•Electrical Specs:​ Standard MODBUS protocol output; powered by DC 12V–24V.
•Communication Interfaces:​ Equipped with RS485, LORA, RJ45, 4G, and other external ports.
•Protocol Support:​ Compatible with MODBUS, IP, TCP, ODP, HTTP, LORA, and other mainstream protocol









Application Industry



Petrochemical Industry

Power Generation Industry

Metallurgical Industry

Cold Storage Room

Petroleum Industry

Storage Tank Industry

Power Plant Room

Cable Tray
