CAT1 gateway is a powerful industrial data acquisition gateway with high stability. The gateway supports a variety of protocols, which can be configured according to the relevant protocols, so that the gateway module communicates with the smart meter sensor, and reports the data in the relevant format after collecting data.

Application place:widely used in places where data management is required, such as smart agriculture, smart transportation, factory automation, etc.
Product Size Description

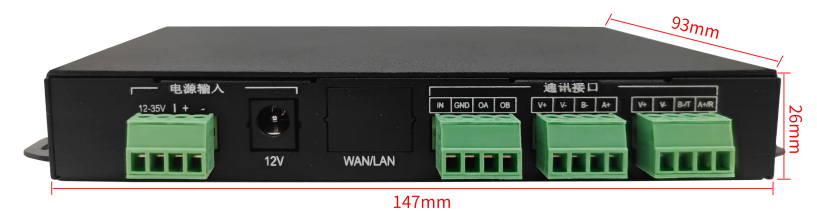

Product size: 147*93*26mm (length*width*height)

Product Interface Description

1、Power Interface
-   Power interface 1 - 4P3.81 plug-in connector.

       2P wiring socket - DC24V power input, no polarity.

       2P wiring socket - DC12V power input, no polarity.
- Power interface 2 - DC005B-2.1 power socket input.

  2DC power socket - DC12V power input.

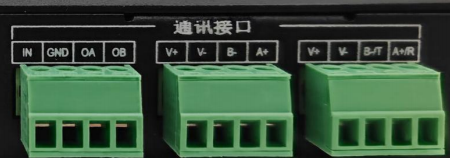

2、Communication Interface
-   MODBUS 1——RS485 interface, 4P3.81 plug-in connector.

       2P wiring socket - output power, ground, with polarity.

       2P wiring socket - RS485 positive and RS485 negative.
- MODBUS 2——RS485 interface, 4P3.81 plug-in socket.

  2DC power socket - output power, ground, with polarity.

  2DC power socket - RS485 positive and RS485 negative.
- I/O interface - I/O interface, 4P3.81 plug-in connector, used for input and output of I/O port.

  2P wiring socket - output power, ground, with polarity.

  2P wiring socket - IO output positive and IO output negative.
3、SIM Card Slot
- SIM Card Slot - Supports Large Cards
4、USB Interface
- USB Interface - Use Type-c Cable To Connect.
SIM Card Slot - Supports Large Cards

5、4G Antenna
- 4G Antenna - Connect To The External Suction Cup Antenna.
6、GPS Antenna
- GPS Antenna——According to the actual situation, the antenna interface and the LORA antenna reserved interface exchange positions, so the antenna interface is the LORA interface, which is connected to the external rod antenna.
7、LORA Antenna
- LORA antenna——According to the actual situation, the reserved antenna interface and the GPS antenna interface exchange positions, so the antenna interface is reserved for the GPS antenna.

Specifications	parameter
Power	DC12V/24V power input, distinguish polarity
Network port	Not currently supported
Communication interface	MODBUS 1 wiring port is the sensor interface

	MODBUS 2 wiring port is the sensor interface
	I/O port, one input port, one output port
SIM card slot	Use standard SIM card
	The insertion method is: insert the SIM card magnetic part downwards
Device indicator		SIM card not detected: flashes alternately in pairs
	4G indicator	Dialing: marquee
		Successful dialing: According to the signal strength, the light is always on, and when the signal strength is updated, it will flash once
	M1 indicator	MODBUS1 sends communication, MODBUS1
		Send data on, receive data off
	M2 indicator	MODBUS2 send communication, MODBUS2
		Send data on, receive data off
	PR indicator	Power indicator, red, always on
		Status 1: When there is LORA data transmission, it will flash once quickly
	LR indicator	State 2: Connect to the platform normally, change the state once a second
USB interface	Use Type-C cable to connect to USB
4G antenna	Support access to 4G antenna
LORA Antenna	Reserve the antenna port (exchange GPS and LORA positions according to the actual situation, this port is the GPS antenna port)
GPS antenna	Support access to rod antenna (this interface is LORA antenna interface)
Keys	puts the gateway into download mode
Supply voltage	DC12V/24V
Supply current	<1A
Working environment	Temperature-10℃~75℃/Humidity 0%~90%RH, neutral environment
Product Power	<3W
Size (mm)	1479326(LWH)
Data Acquisition Protocol	Standard MODBUS protocol
Data reporting	Support 4G reporting to the platform, using MQTT protocol

Instructions For Use

Instructions For Use

After the device is installed, it can work normally when powered on.

Protocol Description

The device supports the "MQTT protocol", please contact our staff for the specific protocol
