Ten-inch Display Terminal

Various communication interfaces
The device has communication interfaces such as 4G, RS485, LoRa, network port, etc.
Display and record data
Display the data measured by the access device in real time, save the data in the SD card, and give a line graph.
Data reporting platform
Data can be reported to the platform through the communication interface.
Using imported chips
Using imported ARM dual-core CPU, the main frequency is up to 1.2GHz.

产品描述
Product Description
Roduct Parameters
Specifications
Instructions For Use

Various communication interfaces
The device has communication interfaces such as 4G, RS485, LoRa, network port, etc.
Display and record data
Display the data measured by the access device in real time, save the data in the SD card, and give a line graph.
Data reporting platform
Data can be reported to the platform through the communication interface.
Using imported chips
Using imported ARM dual-core CPU, the main frequency is up to 1.2GHz.
This product is a touch-type color display terminal that integrates functions such as display, recording, high-speed sampling, real-time monitoring, and data storage. The product has a variety of communication methods, high security, and convenient networking; it adopts a 7-inch touchable LCD screen with high brightness and wide viewing angle, with clear display and simple operation.

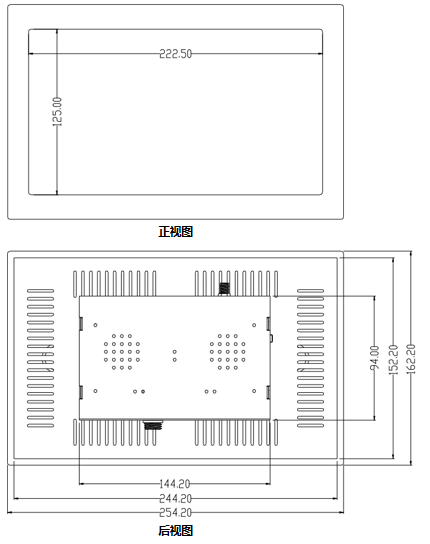

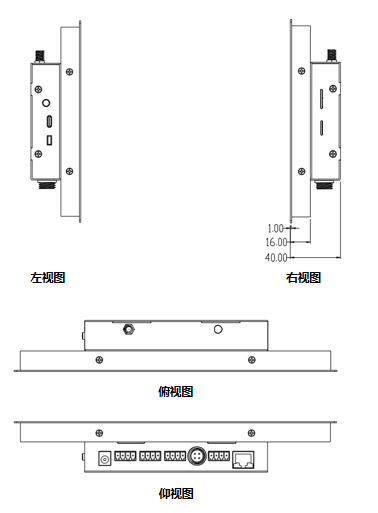

Product Size And View Description

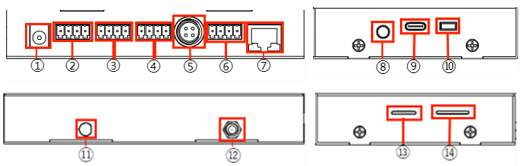

Interface And Button Description
- Power interface 1——DC005B-2.1 power socket input.

  2DC power socket - DC12V power input.
-   Power interface 2 - 4P3.81 plug-in socket.

       2P wiring socket - DC12V power input, distinguish positive and negative.

       2P wiring socket - DC24V power input, no polarity.
-    RS485 interface 1 - port 0, 4P3.81 plug-in connector.

       2P wiring socket - RS485 positive and RS485 negative.

       2P wiring socket - output power, ground, with polarity.
- RS485 interface 2 - port 1, 4P3.81 plug-in socket.

  Aviation Connector - Connect to RS485 equipment with 4-pin aviation plug.
-     I/O interface - I/O interface, 4P3.81 plug-in connector, used for input and output of I/O port.

       2P wiring socket - output power, ground, with polarity.

       2P wiring socket - I/O output positive and I/O output negative.
- Network port - Ethernet port, access network.
- Button - reserved button.
- USB interface - use Type-C cable to connect.
- DeBug port - 5Pin line access.
- Antenna interface - reserved interface for 4G antenna.
- Antenna interface - LoRa antenna interface.

  LoRa antenna interface - access to external sky.
- Memory card slot - supports SD card.
- SIM card slot - supports large cards.

Specifications	Parameters
Master	CPU	ARM Cortex-A series processors, the main frequency can reach up to 1.2GHz
	Memory	32KB I-Cache/32KB D-Cache/256KB L2-Cache
Model	HYD7LA1
Power supply	DC12V/1A
Working temperature	-10℃~75℃
Working humidity	0%~95%RH, no condensation
Resolution	1024x600
Network Protocol	IP, TCP, UDP, HTTP and other protocols
RS485 protocol	MODBUS protocol, custom RS485 protocol
LoRa Protocol	LoRa Protocol, Ad Hoc LoRa Protocol

Instructions For Use

  Instructions

For details, please refer to "Display Terminal Operation Manual"

Protocol Description

  RS485 Protocol

The product supports "MODBUS protocol"

  LoRa Protocol

The product supports the "nLORA Protocol".

Disclaimer OF Warranties

The company reserves the right to change this specification and update the product. The specification and product may be updated without prior notice without affecting the product quality and user usage. We are not responsible for any direct, indirect, intentional or unintentional damage and hidden dangers caused by improper use and out-of-specification use.
