MTK Gateway

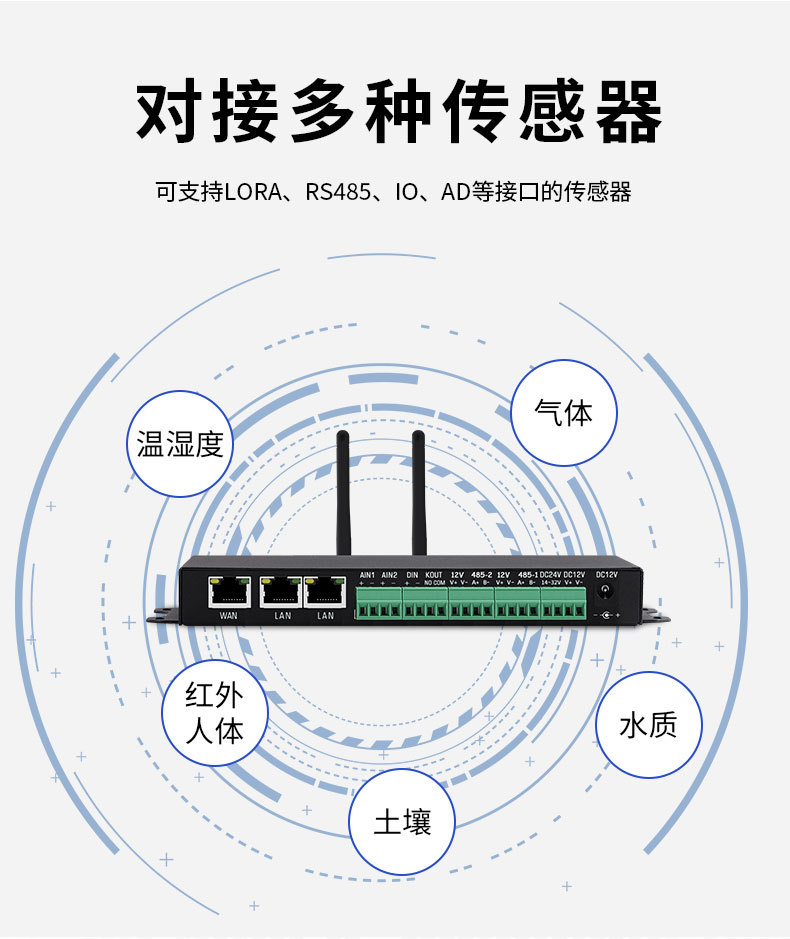

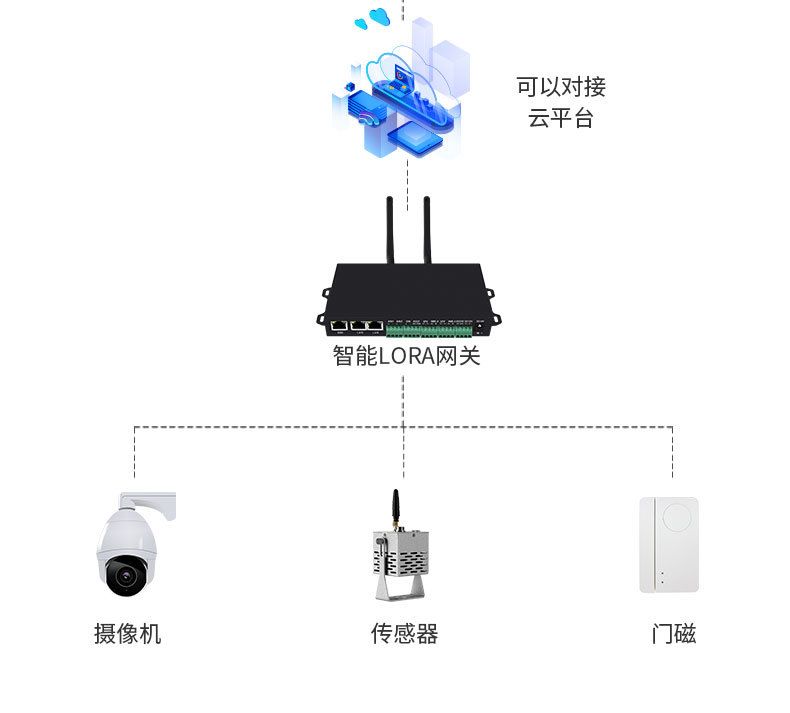

Support LoRa, RS485, IO, AD and other interfaces

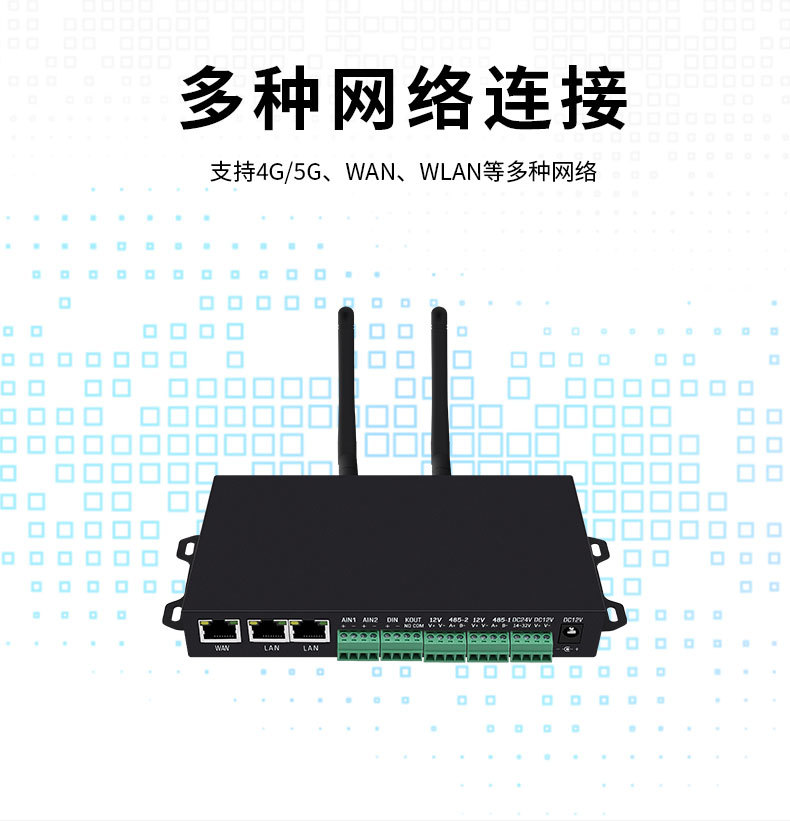

Support 4G/5G, WAN, WLAN and other networks

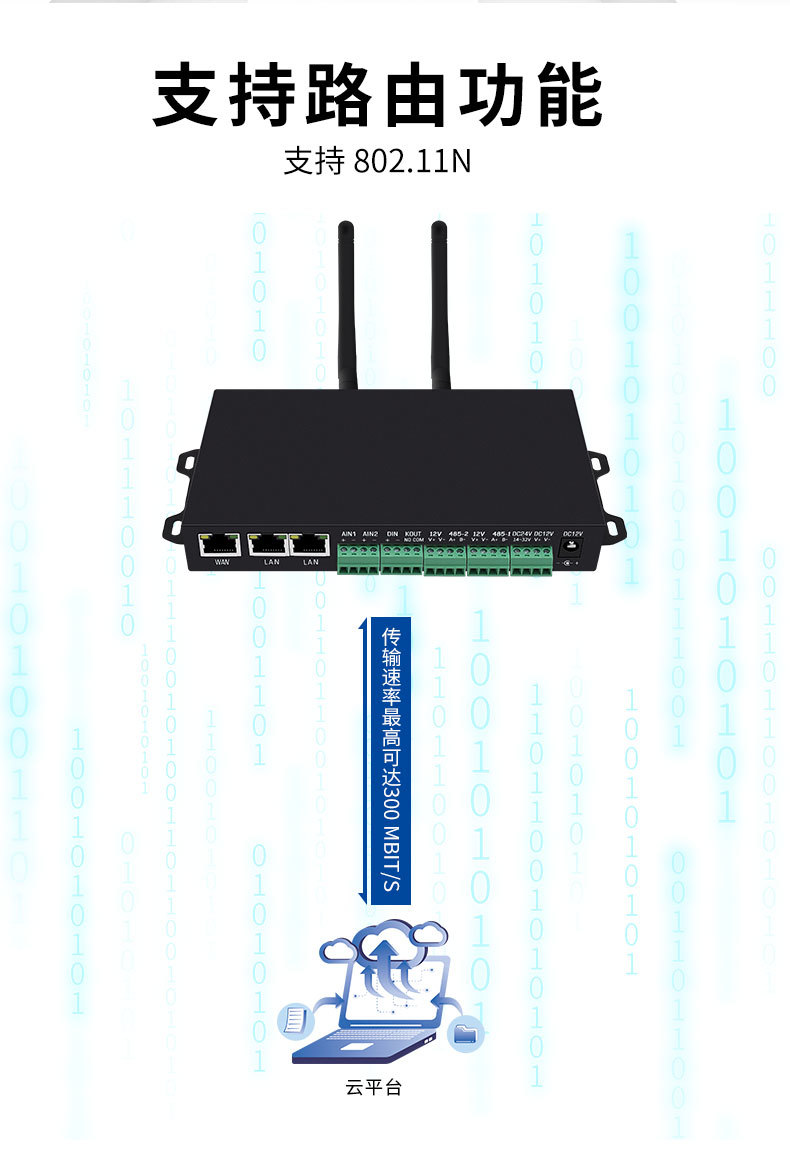

Support routing function, support 802.11n, transmission rate up to 300Mbit/s Support DHCP/DNS function
Support VPDN, APN private network access
Support local or remote firmware upgrade
Support access to MQTT and HTTP platforms

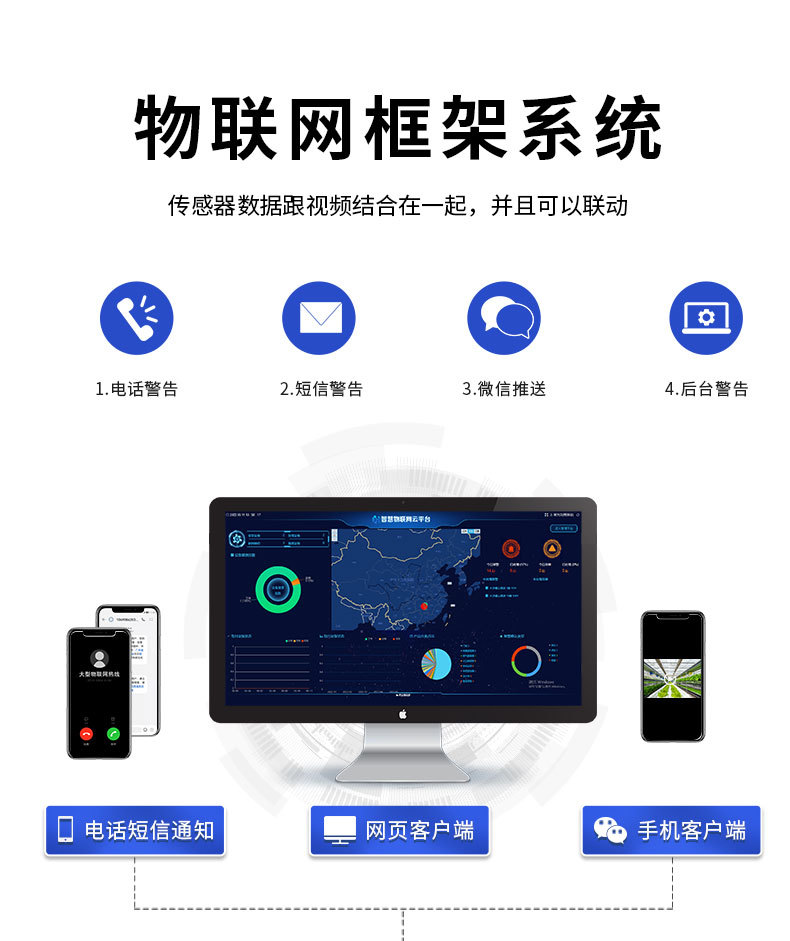

Support the security management platform, which can supervise the equipment of the access gateway in real time
Support system local log, real-time monitoring of gateway status
Support access to monitoring equipment
Support MODBUS-TCP function

产品描述
Product Description
Roduct Parameters
Specifications
Instructions For Use

Support LoRa, RS485, IO, AD and other interfaces
Support 4G/5G, WAN, WLAN and other networks
Support routing function, support 802.11n, transmission rate up to 300Mbit/s Support DHCP/DNS function
Support VPDN, APN private network access
Support local or remote firmware upgrade
Support access to MQTT and HTTP platforms
Support the security management platform, which can supervise the equipment of the access gateway in real time
Support system local log, real-time monitoring of gateway status
Support access to monitoring equipment
Support MODBUS-TCP function

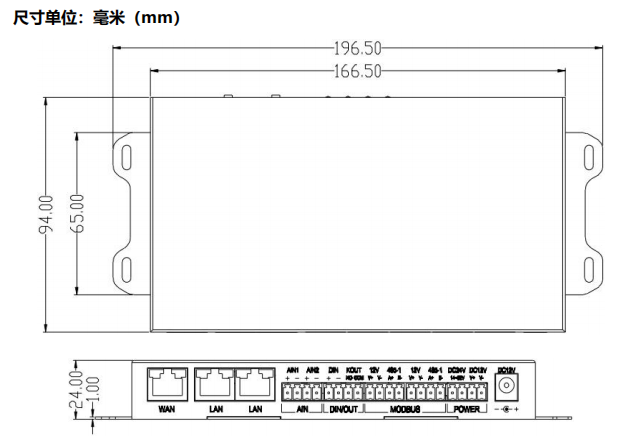

Product Size Description

Product Interface And Button Description

1、Power Interface
- Power interface 1——DC005B-2.1 power socket input.

  2DC power socket - DC12V power input
-   Power interface 2 - 4P3.81 plug-in socket.

       2DC power socket - DC24V power input, no polarity.

       2DC power socket - DC12V power input, with polarity.
2、MODBUS interface
-   MODBUS 1——RS485-1 interface, 4P3.81 plug-in connector.

       2P wiring socket - output power, ground, with polarity.

       2P wiring socket - RS485 positive and RS485 negative.
- MODBUS 2——RS485 interface, 4P3.81 plug-in socket.

  2DC power socket - output power, ground, with polarity.

  2DC power socket - RS485 positive and RS485 negative.
3、 DIN/OUT interface - I/O interface, 4P3.81 plug-in connector.

2P wiring socket - DIN, IO input port.

2P wiring socket - KOUT, IO output port.

4、AIN interface
-   AIN interface - RS485-1 interface, 4P3.81 plug-in connector.

       2P wiring socket - AIN1, AD input port.

       2P wiring socket - AIN2, AD input port
5、 LAN port
- LAN port——LAN interface, network cable access. .
6、WAN port
- WAN port - wide area network interface, network cable access.
7、SIM card slot
- SIM card slot - supports large cards
8、4G antenna
- 4G antenna - access to external suction cup antenna
9、LORA Antenna
- LORA Antenna - Connect to an external rod antenna.
10、WPS Button
- WPS button - reserved button, temporarily no function.
11、 WIFI Antenna
- WIFI antenna - access to external WIFI antenna
12、RST Button
- RST button - the gateway restart button.

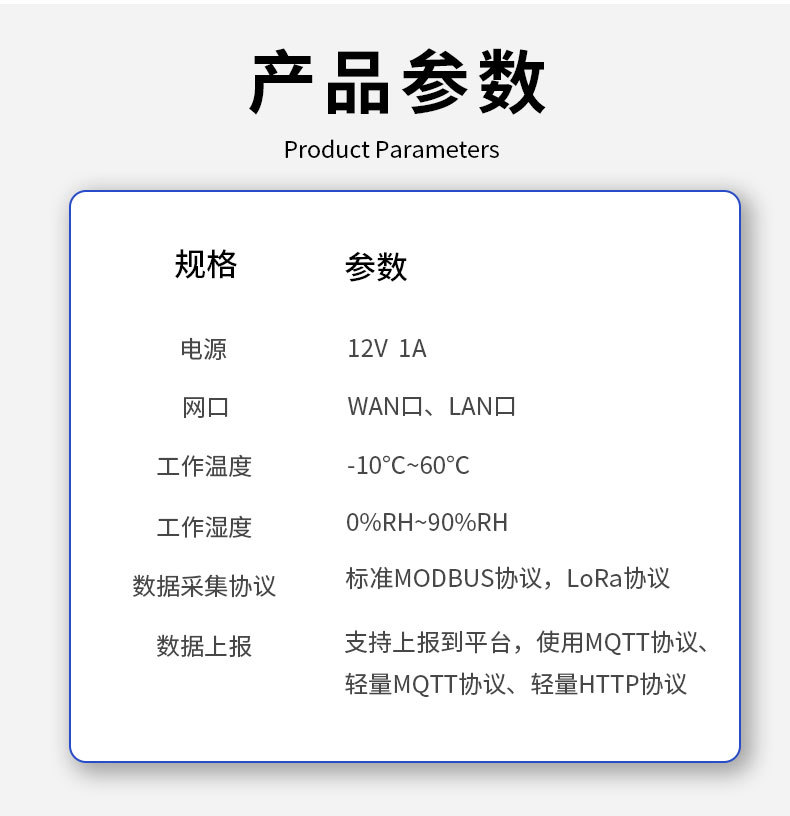

Specifications	parameter
Master	CPU	MT7628AN processor, main frequency up to 570MHz

	memory	64M
power	12V@1A
Network port	WAN port, LAN port
SIM card slot	Use standard SIM card

	The insertion method is: insert the SIM card magnetic part downwards< /td>
Communication interface	MODBUS 1 wiring port is the sensor port< /td>


	MODBUS 2 wiring port is the sensor interface
	I/O port, one input port, one output port< /td>
	AD port, two AD input ports
Device indicator	A1 indicator	Indicates AD status, with data reporting or sending data flashing
	A2 indicator	Indicates AD status, with data reporting or sending data flashing
	OU indicator	Indicates IO output, high level is always on, low level is off
	IN indicator	Indicates IO input, high level is always on, low level is off
	M1 indicator	Indicates 485-1 status, with data reporting or sending data flashing
	M2 indicator	Indicates 485-2 status, with data reporting or sending data flashing
	L0 indicator	Indicates LoRa-1 status, with data reporting or sending data flashing
	L1 indicator	Indicates LoRa-2 status, with data reporting or sending data flashing
	GN, GS, GM, GC are 4G indicators	4G not enabled, all off
		No SIM card detected, GN indicator is always on
		The 4G module is not detected, and the GS indicator is always on
		AT communication fails, GM indicator is always on
		The dialing fails, the GC indicator is always on
		Waiting for network registration, GN and GC indicators are always on
		Dial: Marquee
		Successful dialing, always on according to signal strength
	RES indicator	The expansion board is successfully connected and starts to flash
	NET indicator	The platform connection is successful and starts to flash
	SYS indicator	Power indicator, red, always on
4G antenna interface	Support access to 4G antenna
LORA antenna interface	Support access to LoRa antenna
WIFI antenna interface	Support access to WIFI antenna
RST button	Restart gateway
WPS button	Reserved keys
operating temperature	-10℃~75℃
Working humidity	0%~90%RH
Data Acquisition Protocol	Standard MODBUS protocol, LoRa protocol
Data reporting	Support reporting to the platform, using MQTT protocol and lightweight MQTT protocol , Lightweight HTTP Protocol

Instructions For Use

See "HYD6216 Gateway Instructions" for details.

Disclaimer OF Warranties

The company reserves the right to change this specification and update the product. The specification and product may be updated without prior notice without affecting the product quality and user usage. We are not responsible for any direct, indirect, intentional or unintentional damage and hidden dangers caused by improper use and out-of-specification use.
