Centralized Controller

Easy to connect with the platform
Using industrial grade CPU, the main frequency is up to 540MHZ, which integrates various commonly used Internet network protocols such as IP, TCP, UDP, HTTP, etc., which is convenient for docking with various platforms.
Rich interfaces and easy deployment
The equipment includes RS485, LORA, I/O and other interfaces, and different solutions can be arranged for different applications.
Support data transparent transmission function
The device supports the data transparent transmission function, and the data of all interfaces can be transparently transmitted
Support customization
The equipment supports customization, and software functions can be customized according to user needs.

Picture Name
Contact Us
  • 产品描述
  • Product Description
  • Roduct Parameters
  • Specifications
  • Instructions For Use

  • Easy to connect with the platform
    Using industrial grade CPU, the main frequency is up to 540MHZ, which integrates various commonly used Internet network protocols such as IP, TCP, UDP, HTTP, etc., which is convenient for docking with various platforms.
    Rich interfaces and easy deployment
    The equipment includes RS485, LORA, I/O and other interfaces, and different solutions can be arranged for different applications.
    Support data transparent transmission function
    The device supports the data transparent transmission function, and the data of all interfaces can be transparently transmitted
    Support customization
    The equipment supports customization, and software functions can be customized according to user needs.

  •    This product is an industrial IoT gateway that integrates various communication technologies such as LORA, RS485, RJ45, etc. It can collect local sensor data through I/O, RS485, LORA and other interfaces, and connect it by wired and wireless means. The data of the sensor is uploaded to the cloud, and the instructions from the cloud are received at the same time, and the sensor and switch can be controlled and configured in real time.

       Applications:  Widely used in power industry (underground pipe gallery data collection and equipment control), intelligent buildings, industrial automation data collection and control, smart construction sites and other fields.

  • Product interface and LED description

    1、Power Interface

    •   Power interface 1 - 4P plug-in socket.

           2P wiring socket - DC24V power input, no polarity.

           2P wiring socket - DC12V power input, no polarity.

    •   Power interface 2 - DC005B-2.1 power socket input.

           2DC power socket - DC12V power input.

    2、Network Port

    •   Network port - can be connected to the network cable

    3、RS485 Interface

    •  S485 Interface - 485 parameters can be freely configured to connect various sensors

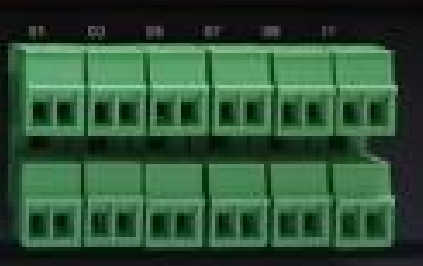

    4、I/O Input Port

    •   I/O input port - can detect the change of input IO status and report it immediately.

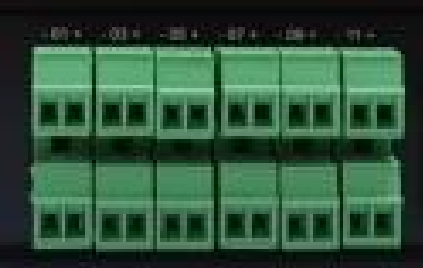

    5、I/O output port

    •  I/O output port - relay output, save the output state when power off.

    6、LORA Interface

    •  LORA Interface - can be connected to the LORA antenna.

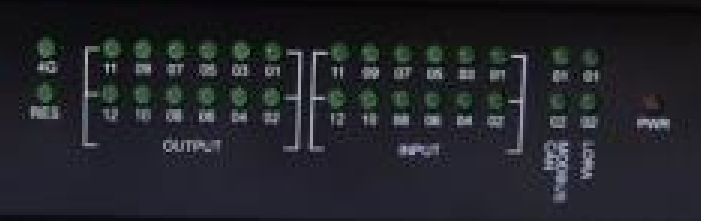

    7、LED Lights

    •  LED light - Indicates device status.

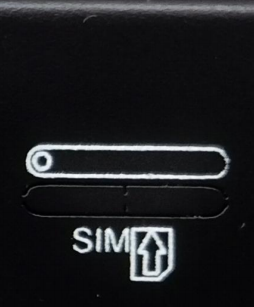

    8、SIM Card Slot

    •  SIM card slot - not currently supported.

  • Parameters

    Description



    Master

    CUP

    ARM9 series processor, the main frequency is up to 540MHZ



    Memory

    64MB

    Wireless

    LORA

    430~434MHZ, others can be customized 913~918MHz





    External interface

    Data interface

    1 Ethernet port, 2 LORA, 2 RS485 ports, 12

    GPI interface, 12 GPO interfaces



    Supply voltage

    DC 12V~36V input



    Working environment

    Working temperature -10℃~75℃, humidity 0%~90%RH



    Current consumption

    Working current: <200mA/24V,

    Maximum current: 1000mA/24V





    Software Agreement

    Operating System

    LINUX 3.4



    Internet Protocol

    IP, TCP, UDP, HTTP, HTTPS



    Wireless Protocol

    LORA protocol, ad hoc network LORA protocol



    RS485

    MODBUS, custom 485 communication protocol



  • Instructions For Use



             When powered on for the first time, connect the power supply correctly and connect the gateway according to the wiring instructions. The device supports LoRa and RS485 communication.



    Protocol Description

                This gateway supports customized private protocols



    Disclaimer OF Warranties

                The company reserves the right to change this specification and update the product. The specification and product may be updated without prior notice without affecting the product quality and user usage. We are not responsible for any direct, indirect, intentional or unintentional damage and hidden dangers caused by improper use and out-of-specification use.
