Middle Gateway

Easy to connect with the platform
Using industrial-grade CPU, the main frequency is up to 540MHZ, which integrates various commonly used Internet network protocols such as IP, TCP, UDP, HTTP, etc., which is convenient for docking with various platforms
The device supports multiple protocols
The device supports IP, TCP, UDP, HTTP and other network protocols; LORA protocol, WIFI protocol, ad-hoc network LORA protocol and other wireless protocols; MODBUS, custom 485 communication protocol and other 485 protocols.
Two control methods, easy to operate
The device can control the gateway through Web pages and AT commands.
Multiple data interfaces for easy deploymentThe device interface includes RS485, network port, LoRa and other interfaces, supports 4G, serial terminal communication, and provides different access solutions for different applications. .

产品描述
Product Description
Roduct Parameters
Specifications
Instructions For Use

Easy to connect with the platform
Using industrial-grade CPU, the main frequency is up to 540MHZ, which integrates various commonly used Internet network protocols such as IP, TCP, UDP, HTTP, etc., which is convenient for docking with various platforms
The device supports multiple protocols
The device supports IP, TCP, UDP, HTTP and other network protocols; LORA protocol, WIFI protocol, ad-hoc network LORA protocol and other wireless protocols; MODBUS, custom 485 communication protocol and other 485 protocols.
Two control methods, easy to operate
The device can control the gateway through Web pages and AT commands.
Multiple data interfaces for easy deploymentThe device interface includes RS485, network port, LoRa and other interfaces, supports 4G, serial terminal communication, and provides different access solutions for different applications. .
HiSilicon Gateway is an industrial-grade IoT gateway. It can collect local wired and wireless sensor data through I/O, RS485, and LoRa wireless technologies, and upload sensor data through 2G/3G/4G and RJ45. Go to the cloud, and receive commands from the cloud at the same time, and control and configure sensors and switches in real time.

Applications:Widely used in smart toilets, smart construction sites, smart buildings, smart environmental protection, industrial automation data collection and control and other fields.
Product Size Description

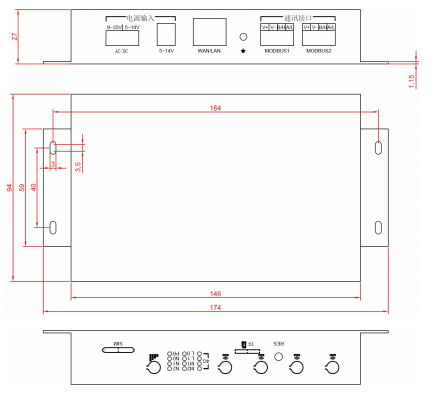

Product size chart (unit: mm)

Product Interface And Button Description

1. Power interface
-   Power interface 1 - 4P3.81 plug-in connector.

       2P wiring socket - DC24V power input, no polarity.

       2P wiring socket - DC12V power input, no polarity.
- Power interface 2 - DC005B-2.1 power socket input.

  2DC power socket - DC12V power input.
2、Communication Interface
-   MODBUS 1——RS485 interface, 4P3.81 plug-in connector.

       2P wiring socket - output power, ground, with polarity.

      2P wiring socket - RS485 positive and RS485 negative.
- MODBUS 2——RS485 interface, 4P3.81 plug-in socket.

  2DC power socket - output power, ground, with polarity.

  2DC power socket - RS485 positive and RS485 negative.
3、SIM card slot
- SIM card slot - supports large cards
4、USB Interface
- USB interface - use Type-C cable to connect.
5、4G Antenna
- 4G Antenna - 4G sucker antenna can be connected.
6、LORA Antenna
- LORA Antenna - Reserve the LORA antenna interface.
7、network port
- Network port - can be connected to the network cable.

Specifications		Parameters
Master	CPU	ARM9 series processor, the maximum operating frequency supports 540MHz
	Memory	64MB
Wireless	2G/3G/4G	FDD-LTE, TDD-LTE, DC-HSPA+/HSPA+/HSPA/WCDMA, TD-SCDMA/GSM/GPRS/EDGE
	LORA	430~434MHZ, others can be customized 913~918MHz
External interface	Data interface	1 Ethernet port, 2 LORA, 1 2G/3G/4G, 2 RS485 ports
	Supply voltage	DC 12V~36V input
	Work environment	Working temperature: -10℃~75℃, Working humidity: 0%~90%RH
	Current consumption	Working current: <200mA/24V, Maximum current: 1000mA/24V
Software Agreement	Operating System	LINUX 3.4
	Network Protocol	IP, TCP, UDP, HTTP and other protocols
	Wireless Protocol	LORA protocol, ad hoc network LORA protocol
	RS485	MODBUS, custom 485 communication protocol

Instructions For Use

After the device is installed, it can work normally when powered on

Protocol Description

The device supports custom privatization protocols.

Disclaimer OF Warranties

The company reserves the right to change this specification and update the product. The specification and product may be updated without prior notice without affecting the product quality and user usage. We are not responsible for any direct, indirect, intentional or unintentional damage and hidden dangers caused by improper use and out-of-specification use.
