This product is used for data conversion between wireless and wired. Wireless is LoRa transmission mode, and wired is RS485 and RS232 transmission mode.

Application places：Widely used in places where sensor data needs to be converted, such as smart agriculture, smart buildings, and automated manufacturing.

Communication Interface

1、LoRa communication

Through LoRa wireless communication, sensor data is transmitted, and sensor status is controlled.

2、RS485 communication

Through the RS485 communication method, the sensor data is transmitted, and the sensor status is controlled.

3、RS232 communication

Through RS232 communication, transmit sensor data, control sensor status, etc.

4、1 input IO

Input IO is used to detect external input signals, mainly used to connect IO alarms and sensors.

5、1 output IO

The switch signal is used to control the switch of external equipment.

Interface Definition Description

Interface silkscreen	Interface definition
V+	Power input positive
V-	Power input negative
A+	RS485+
B-	RS485-
V+	Power input positive
V-	Power input negative
RX	MCU end RS232 receive, connect to the other end to send
TX	MCU end RS232 send, receive the other end
IN+	IO input positive
IN-	IO input negative, same as power input negative
OA	Normal input
OB	normal output

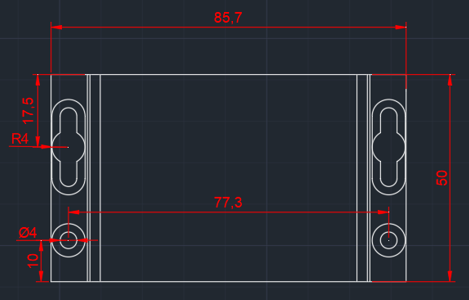

Product size chart

Specification		parameter
Product model		HYC7L32
hardware interface	Wireless	LoRa
	line style	RS485/RS232
	input IO	1 input
	output IO	1 switch output
	Button	1
	USB	1 TypeC interface, power supply, upgradeable
	LED	6
LoRa parameters	LoRa frequency	150MHz ~ 960MHz
	RX sensitivity	-140dBm
	TX power	Max +21dBm
Electrical parameters	Power mode	Power adapter/USB
	power	DC8-32V/1A, USB
	size	85.710096(lengthwidthheight, including LoRa antenna)
	operating temperature	-20℃ ~ +85℃
	Working humidity	10 ~ 95% (no condensation)

Instructions For Use

When powered on for the first time, connect the power supply correctly and connect the gateway according to the wiring instructions. The device supports LoRa and RS485 communication.

Disclaimer OF Warranties

The company reserves the right to change this specification and update the product. The specification and product may be updated without prior notice without affecting the product quality and user usage. We are not responsible for any direct, indirect, intentional or unintentional damage and hidden dangers caused by improper use and out-of-specification use.
