Matrix Thermopile Temperature Measurement Module

Infrared imaging
It integrates photoelectric imaging technology, computer technology and image processing technology.
Dockable platform
It can be connected to the temperature measurement and alarm platform to display dynamic temperature images, SMS and voice abnormal temperature alarms.
Quick temperature measurement
High sensitivity, quick response and accurate measurement.
Ultra-large angle temperature measurement
The temperature measurement angle is 120°, and the same distance can cover more temperature measurement areas.
Strong anti-interference
By receiving the infrared rays (infrared radiation) emitted by the object and displaying its thermal image on the fluorescent screen, the temperature distribution on the surface of the object can be accurately judged.

产品描述
Product Description
Roduct Parameters
Specifications
Instructions For Use

Infrared imaging
It integrates photoelectric imaging technology, computer technology and image processing technology.
Dockable platform
It can be connected to the temperature measurement and alarm platform to display dynamic temperature images, SMS and voice abnormal temperature alarms.
Quick temperature measurement
High sensitivity, quick response and accurate measurement.
Ultra-large angle temperature measurement
The temperature measurement angle is 120°, and the same distance can cover more temperature measurement areas.
Strong anti-interference
By receiving the infrared rays (infrared radiation) emitted by the object and displaying its thermal image on the fluorescent screen, the temperature distribution on the surface of the object can be accurately judged.
This product is a new generation of thermometer integrating infrared lattice temperature measurement and network transmission. It has the functions of infrared lattice rapid temperature measurement, network transmission, over-limit alarm, infrared imaging and other functions. The device has built-in high-sensitivity infrared detectors and high-speed The high-resolution visible light detector can effectively detect temperature changes and accurately measure the temperature of targets in the environment.

The infrared thermopile alarm instrument can measure the surface temperature of the object without touching the target, which allows the user to easily measure the target that is difficult to approach or move. Due to the non-contact measurement, the temperature of the measured object will not be changed during the measurement process, so the measurement results are true and reliable.

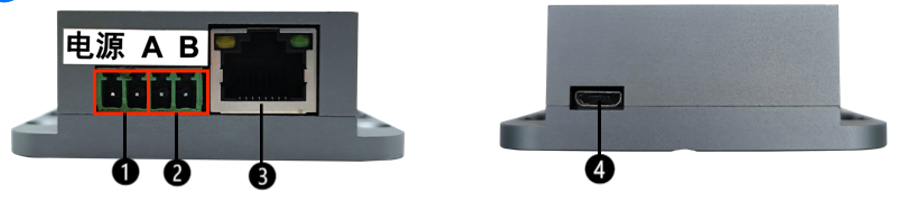

Interface Schematic

Power interface - DC12V, distinguish between positive and negative.
RS485 interface - 485 positive "A+", 485 negative "B-".
Network port - access network cable.
USB interface - connect to TYPE-C cable.

Basic Parameters

Specifications	Parameters
Model	HYT2145
Transfer method	RS485
Infrared object distance ratio	D:S+12:1
Protection level	IP65
Response Time	1S
Measurement range	-70℃~380℃
Measurement accuracy	±0.5℃
Measurement method	Non-contact temperature measurement

Object Distance Ratio

Specification	parameter
Working temperature	-40℃~125℃
Powered	12V(18mA(max27mA))/24V
Connection method	4pin aviation header
Other	laser
Power	Air plug power supply: 12V1A / 24V1A

Instructions For Use

  Installation Notes

1、According to the measurement requirements and the measurement distance of the instrument, select the appropriate installation distance and orientation.

2、Adjust the measurement direction of the probe so that the object to be measured is generally facing the observation site.

  3、Fix the thermometer.

  Instructions For Use

1、After the installation is completed according to the installation instructions, power on for the first time and connect to the network cable, you can view the real-time dynamic temperature on the temperature measurement platform.

Protocol Description

Network protocol - see "Hengyi Multi-Type Terminal Network Protocol" for details.

Transmission protocol - see "Benefit Matrix Data Local Transmission Protocol" for details.

  Docking agreement - see "Benefit Agreement Docking" for details.

Disclaimer OF Warranties

The company reserves the right to change this specification and update the product. The specification and product may be updated without prior notice without affecting the product quality and user usage. We are not responsible for any direct, indirect, intentional or unintentional damage and hidden dangers caused by improper use and out-of-specification use.
